Запчасти Case IH MAXXUM 145 (90.124.AK[04]) - VAR - 391283 - SEAT, AIR SUSPENSION, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

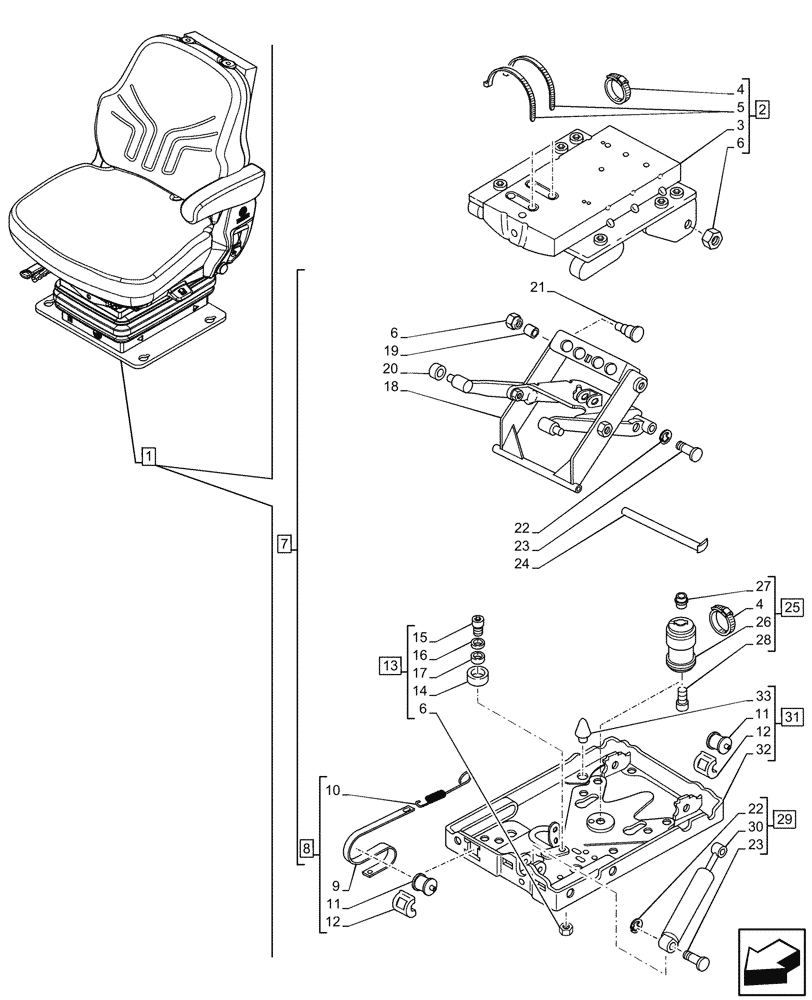

Схема запчастей Case IH MAXXUM 145 - (90.124.AK[04]) - VAR - 391283 - SEAT, AIR SUSPENSION, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
18
6
15
22
20
27
4
12
22
12
33
31
2
16
19
28
8
6
6
3
29
23
26
13
23
32
11
1
4
24
11
21
10
30
25
17
9
5
14

Артикул

Название

Примечание

Количество

1

47725120

DRIVER SEAT

ASSY, Fabric, Confetti Wheat, Incl 2 - 33

1шт.

See also Driver Seat Components in Figure 55.512.CQ (05), 90.124.AD (04), 90.124.AH (04), 90.124.AL (04), 90.124.AM (07), 90.124.AM (08), 90.124.AN (01), 90.151.AD (04)

1шт.

2

9971516

MOUNTING PLATE

ASSY, Incl 3, 4 (Qty 2), 5, 6 (Qty 2)

1шт.

3

NSS

NOT SOLD SEPARAT

Mounting Plate, Incl in 2

1шт.

4

87567529

CABLE TIE,200mm L

4шт.

5

84171410

WIRE CLAMP

3шт.

6

82034883

NUT,CL 8.8

5шт.

7

82035107

ARM

ASSY, Incl 6 (Qty 2), 8 - 24

1шт.

8

82035102

INDICATOR

ASSY, Incl 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

Indicator, Incl in 8

1шт.

10

9958790

SPRING

1шт.

11

9958785

ROLLER

1шт.

12

9958786

GUIDE

1шт.

13

82035088

KIT

ASSY, Incl 6 (Qty 1), 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

Bumper Kit, Incl in 13

1шт.

15

82035047

SCREW,M8 x 20mm

1шт.

16

82034881

WASHER,8.4mm ID

1шт.

17

85817525

SPACER

1шт.

18

NSS

NOT SOLD SEPARAT

Arm, Incl in 7

1шт.

19

82035048

BUSHING

4шт.

20

9958784

SPACER

4шт.

21

9972175

PIN

2шт.

22

9972178

CIRCLIP,M5

2шт.

23

9959588

BOLT,M8 x 22mm

2шт.

24

9972176

PIN

1шт.

25

87705193

KIT

ASSY, Incl 4 (Qty 2), 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

Air Spring, Incl in 25

1шт.

27

87331945

FERRULE

2шт.

28

345112A1

SCREW,M8 x 20mm L

1шт.

29

82035058

SHOCK ABSORBER

ASSY, 22, 23, 30

1шт.

30

NSS

NOT SOLD SEPARAT

Shock Absorber, Incl in 29

1шт.

31

82035119

SUSPENSION

ASSY, Incl 11, 12, 32, 33

1шт.

32

NSS

NOT SOLD SEPARAT

Suspension, Incl in 31

1шт.

33

71485476

BUMPER

2шт.

Выбрано товаров: 34
