(90.124.AE[05]) - VAR - 758362 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, MOUNTING - BEGIN YR 05-NOV-2015

Запчасти Case IH MAXXUM 145 (90.124.AE[05]) - VAR - 758362 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, MOUNTING - BEGIN YR 05-NOV-2015 (90) - PLATFORM, CAB, BODYWORK AND DECALS

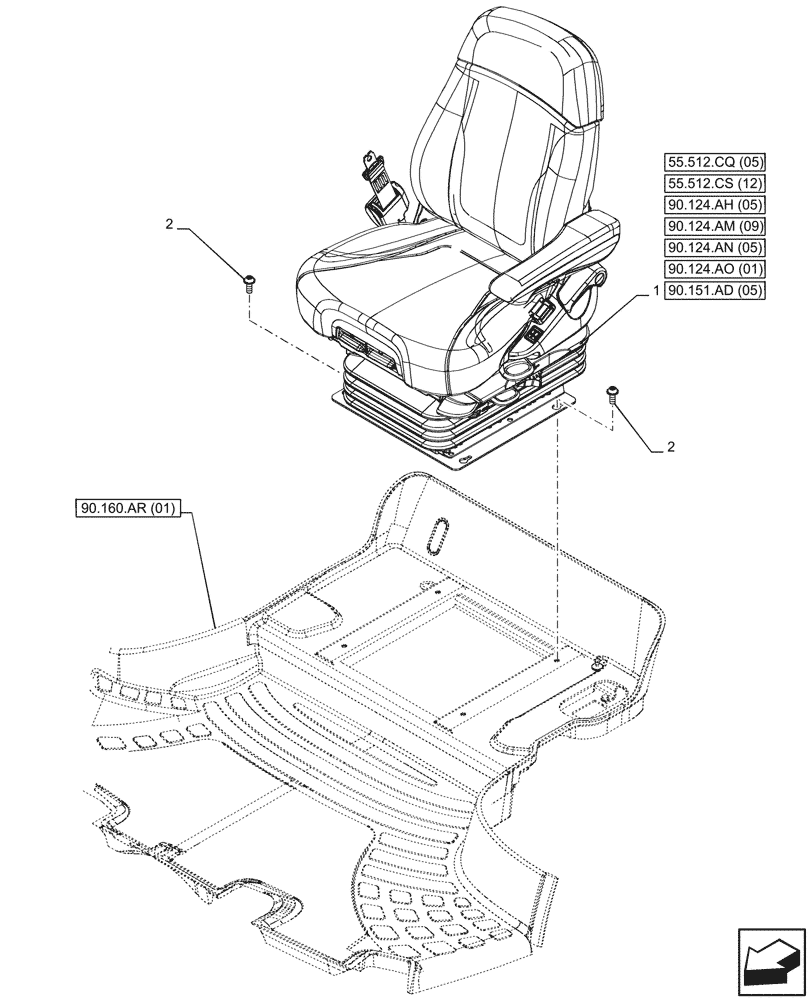

Схема запчастей Case IH MAXXUM 145 - (90.124.AE[05]) - VAR - 758362 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, MOUNTING - BEGIN YR 05-NOV-2015 (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.am (09)
2
2
1
55.512.cq (05)
90.160.ar (01)
55.512.cs (12)
90.124.ao (01)
90.124.an (05)
90.151.ad (05)
90.124.ah (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47725229

DRIVER SEAT

Fabric Verona Grey, De Luxe Comfort Pack EHR, ASSY

1шт.

2

47901143

SCREW,Torx, Pan HD, M8 x 18mm, Cl 8.8

4шт.

Выбрано товаров: 2
