(90.124.AE[04]) - VAR - 758675 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, MOUNTING

Запчасти Case IH MAXXUM 145 (90.124.AE[04]) - VAR - 758675 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

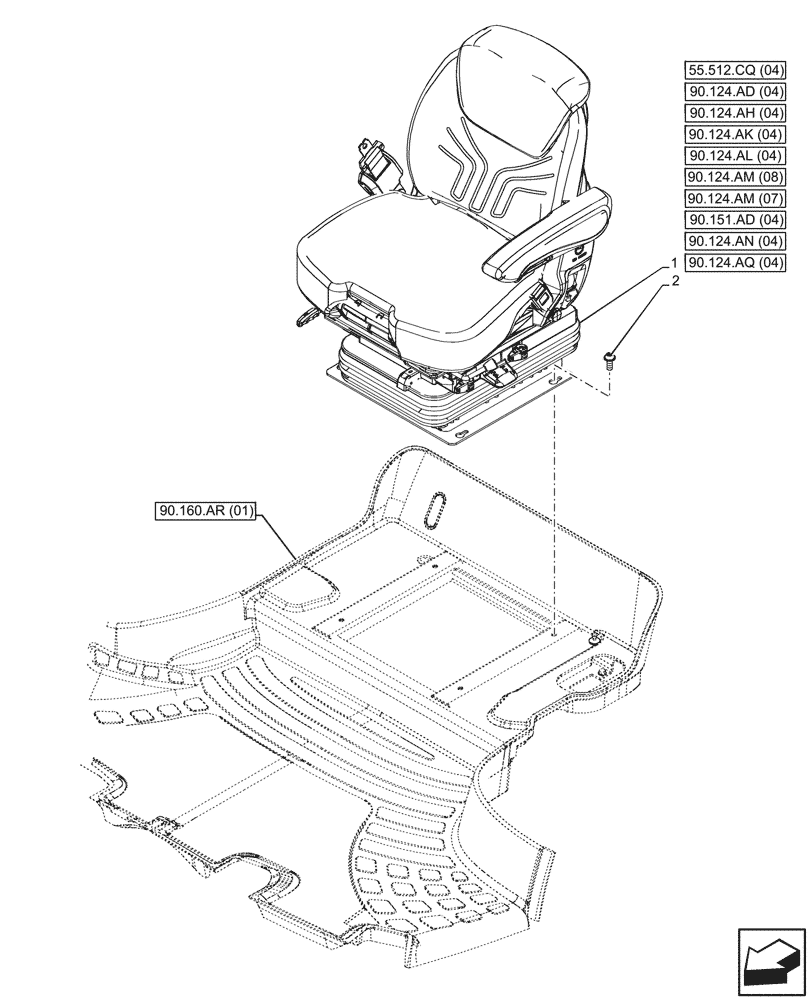

Схема запчастей Case IH MAXXUM 145 - (90.124.AE[04]) - VAR - 758675 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.am (08)
1
2
90.124.am (07)
90.151.ad (04)
90.160.ar (01)
90.124.ak (04)
90.124.ad (04)
90.124.ah (04)
55.512.cq (04)
90.124.aq (04)
90.124.an (04)
90.124.al (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47725248

DRIVER SEAT

Deluxe Seat with Low Frequency air suspension with heated cushions & Belt, ASSY

1шт.

2

47771375

SCREW

4шт.

Выбрано товаров: 2
