Запчасти Case IH MAXXUM 145 (90.124.AD[02]) - VAR - 391283 - DRIVER SEAT, ARMREST (90) - PLATFORM, CAB, BODYWORK AND DECALS

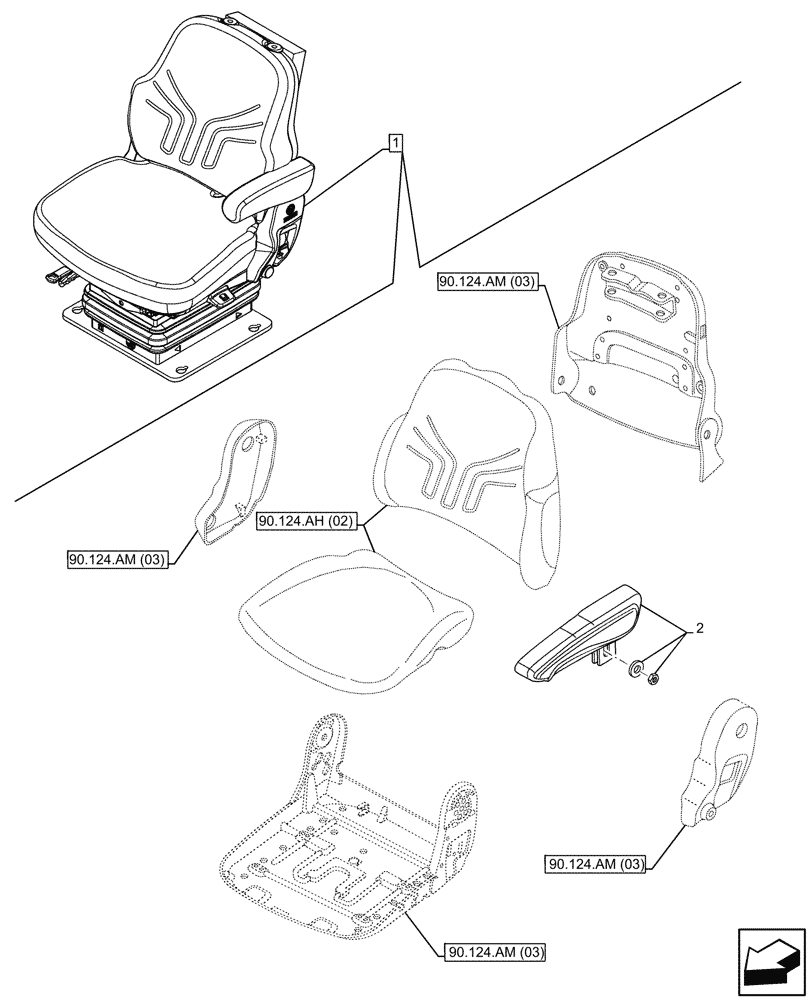

Схема запчастей Case IH MAXXUM 145 - (90.124.AD[02]) - VAR - 391283 - DRIVER SEAT, ARMREST (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.am (03)
1
2
90.124.ah (02)
90.124.am (03)
90.124.am (03)
90.124.am (03)

Артикул

Название

Примечание

Количество

1

47725120

DRIVER SEAT

ASSY, Fabric, Confetti Wheat, Incl 2

1шт.

See also Driver Seat Components in Figure 55.512.CQ (05), 90.124.AH (04), 90.124.AK (04), 90.124.AL (04), 90.124.AM (07), 90.124.AM (08), 90.124.AN (01), 90.151.AD (04)

1шт.

2

82034988

ARMREST

1шт.

Выбрано товаров: 3
