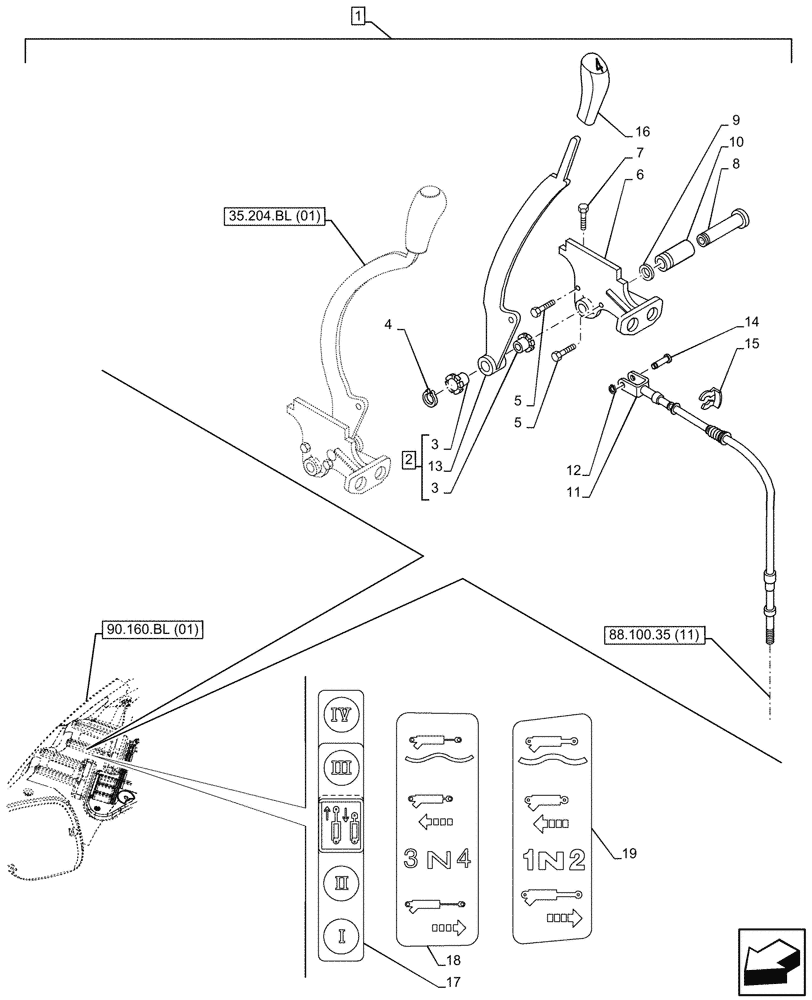

Запчасти Case IH MAXXUM 145 (88.100.35[13]) - DIA KIT, 4 REMOTE CONTROL VALVES, W/ MECHANICAL ENGAGEMENT, CONTROL LEVER (88) - ACCESSORIES

1

710020054

DIA KIT, TRACTOR

Additional Rear Remote Valve (from 3 to 4), Incl 2 - 20

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

82036839

LEVER

ASSY, 4th, Incl 3, 13

1шт.

3

82035633

BUSHING

2шт.

4

11088171

SNAP RING,M11

1шт.

5

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

6

87308465

HOUSING

1шт.

7

13806421

SET SCREW,Hex Soc, M6 x 8mm

1шт.

8

82035628

HEADED PIN,11.98mm OD x 95mm L

1шт.

9

81819651

SPRING WASHER,13mm ID x 19mm OD

1шт.

10

82035996

SPACER,12mm ID x 20mm OD x 26mm L

1шт.

11

87678198

CABLE,1828mm L

Remote Control

1шт.

12

11087771

LOCKING RING

1шт.

13

NSS

NOT SOLD SEPARAT

Lever, Incl in 2

1шт.

14

82036373

CLEVIS PIN,5.96mm OD x 18.5mm L

1шт.

15

82007837

LOCKING RING

1шт.

16

47723863

KNOB

N. 4, Black

1шт.

16

87302203

KNOB

Black

1шт.

17

87311455

DECAL

1-2-3-4 Remote Valve

1шт.

18

87556508

DECAL

3-4 Remote Valve

1шт.

19

87556505

DECAL

1-2 Remote Valve

1шт.
