(55.522.AB[01]) - VAR - 390811, 743699, 743700, 744790 - FRONT PTO SWITCH

Запчасти Case IH MAXXUM 145 (55.522.AB[01]) - VAR - 390811, 743699, 743700, 744790 - FRONT PTO SWITCH (55) - ELECTRICAL SYSTEMS

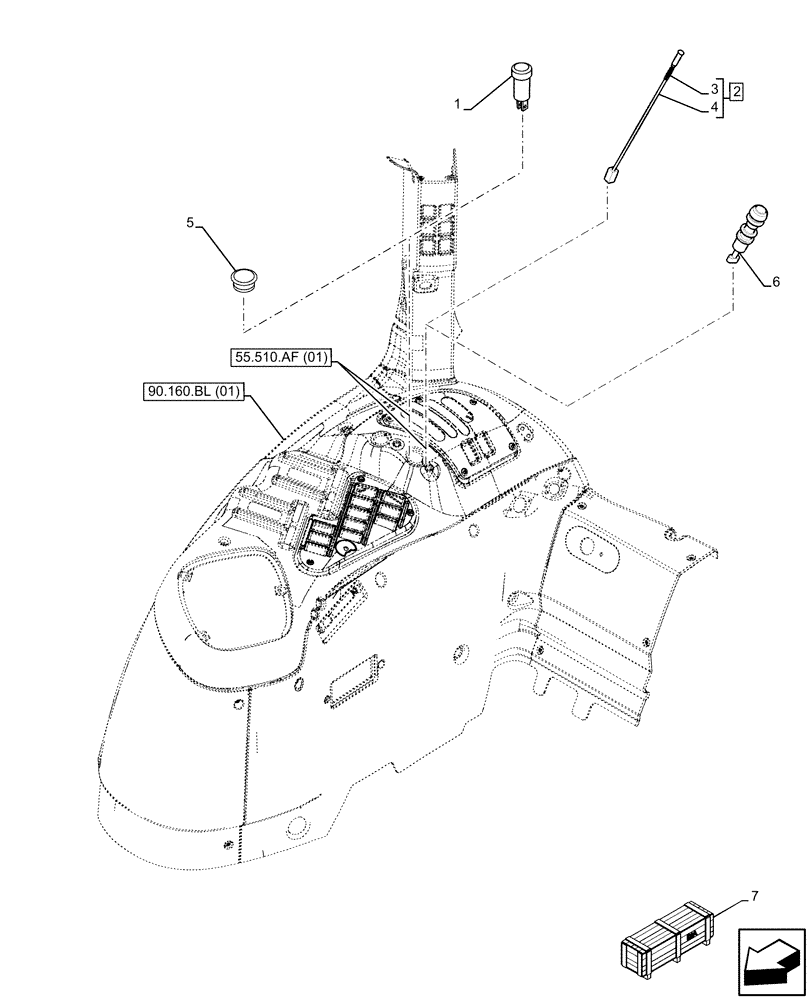

Схема запчастей Case IH MAXXUM 145 - (55.522.AB[01]) - VAR - 390811, 743699, 743700, 744790 - FRONT PTO SWITCH (55) - ELECTRICAL SYSTEMS
90.160.bl (01)
5
1
6
3
2
4
7
55.510.af (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87605071

SWITCH ASSY

Front PTO

1шт.

2

82036455

WARNING LIGHT

ASSY, Front PTO, Incl 3, 4

1шт.

3

47056319

WARNING LIGHT

Front PTO, Yellow

1шт.

4

NSS

NOT SOLD SEPARAT

Lamp, Incl in 2

1шт.

5

82032555

PLUG,129.5mm ID

1шт.

Without Front PTO Switch

1шт.

6

47056362

INDICATOR LIGHT,LED

1шт.

Without Front PTO Warning Light

1шт.

7

718041054

DIA KIT, TRACTOR

Front Power Take-Off W/6 Splines, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

7

719098114

DIA KIT, TRACTOR

Front Power Take-Off for Hydraulic Power Lift W/6 Splines, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
