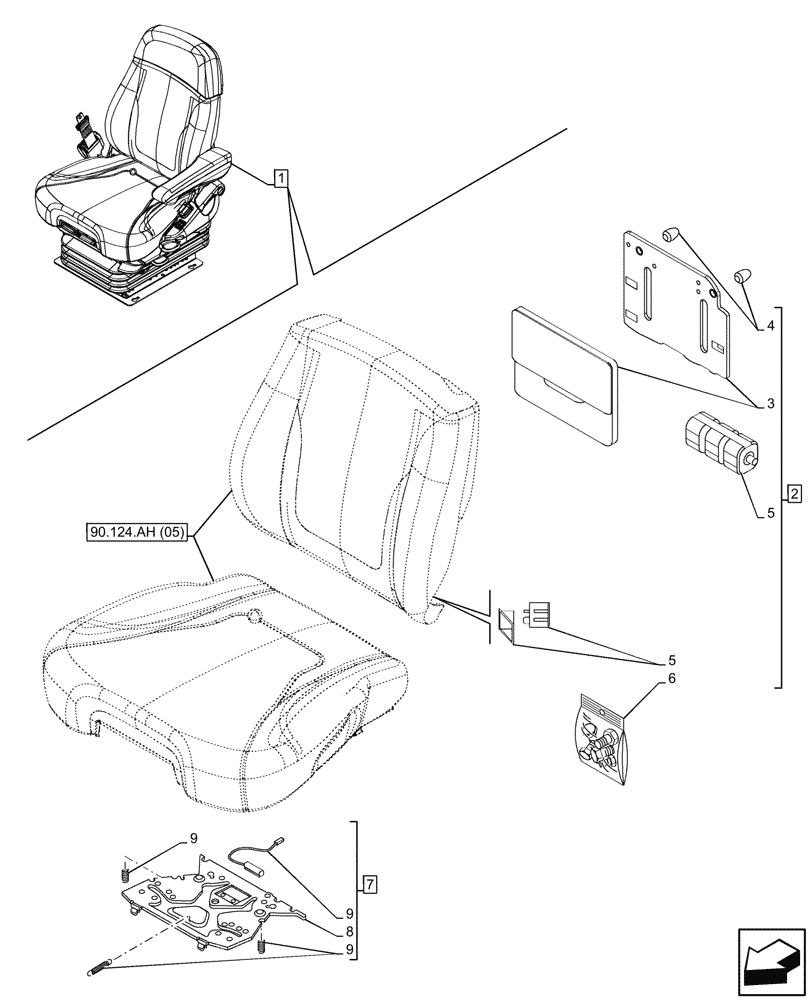

Запчасти Case IH MAXXUM 145 (55.512.CS[12]) - VAR - 758362 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, AIR COMPRESSOR, SENSOR, BLOWER - BEGIN YR 05-NOV-2015 (55) - ELECTRICAL SYSTEMS

1

47725229

DRIVER SEAT

ASSY, Fabric Verona Grey, De Luxe Comfort Pack EHR, Incl 2 - 9

1шт.

See also Driver Seat Components in Figure 55.512.CQ (05), 90.124.AH (05), 90.124.AM (09), 90.124.AN (05), 90.124.AO (01), 90.151.AD (05)

1шт.

2

47891539

SUPPORT

ASSY, Incl 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Support, Incl in 2

1шт.

4

47918168

REPAIR KIT

1шт.

5

47918164

AIR COMPRESSOR

1шт.

6

47918167

SERVICE KIT

1шт.

7

47891523

SERVICE KIT

ASSY, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Plate, Incl in 7

1шт.

9

84191201

SET OF PARTS

1шт.
