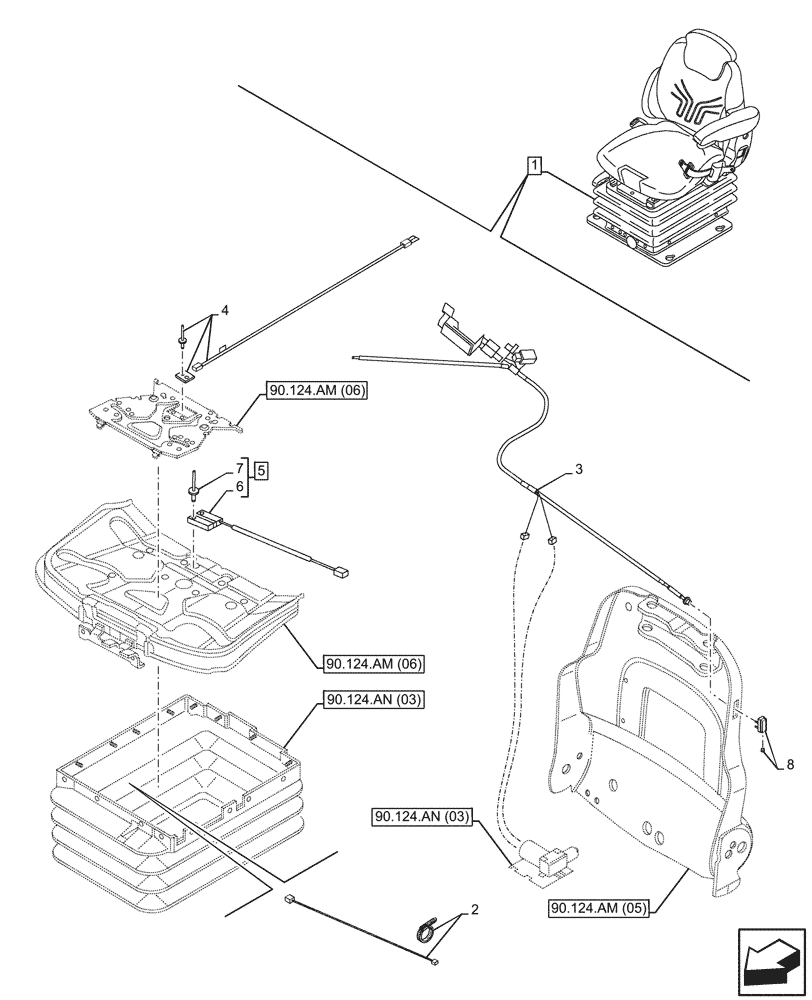

Запчасти Case IH MAXXUM 145 (55.512.CQ[03]) - VAR - 758674 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, CONTROL, SWITCH (55) - ELECTRICAL SYSTEMS

1

47725243

DRIVER SEAT

ASSY, Deluxe Air suspension & Belt, Incl 2 - 8

1шт.

See also Driver Seat Components in Figure 90.124.AD (03), 90.124.AH (03), 90.124.AK (03), 90.124.AL (03), 90.124.AM (05), 90.124.AM (06), 90.124.AN (03), 90.124.AQ (03), 90.151.AD (03)

1шт.

2

84247564

WIRE HARNESS

1шт.

3

84190970

WIRE HARNESS

Seat Suspension

1шт.

4

84191190

WIRE HARNESS

Adapter Cable

1шт.

5

84247587

SWITCH

ASSY, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Switch, Incl in 5

1шт.

7

84191201

SET OF PARTS

1шт.

Include also Small Parts in Figure 90.124.AM (06)

1шт.

8

84223027

SWITCH

Heater

1шт.
