Запчасти Case IH MAXXUM 145 (55.512.CQ[02]) - VAR - 391283 - DRIVER SEAT, CONTROL, SWITCH (55) - ELECTRICAL SYSTEMS

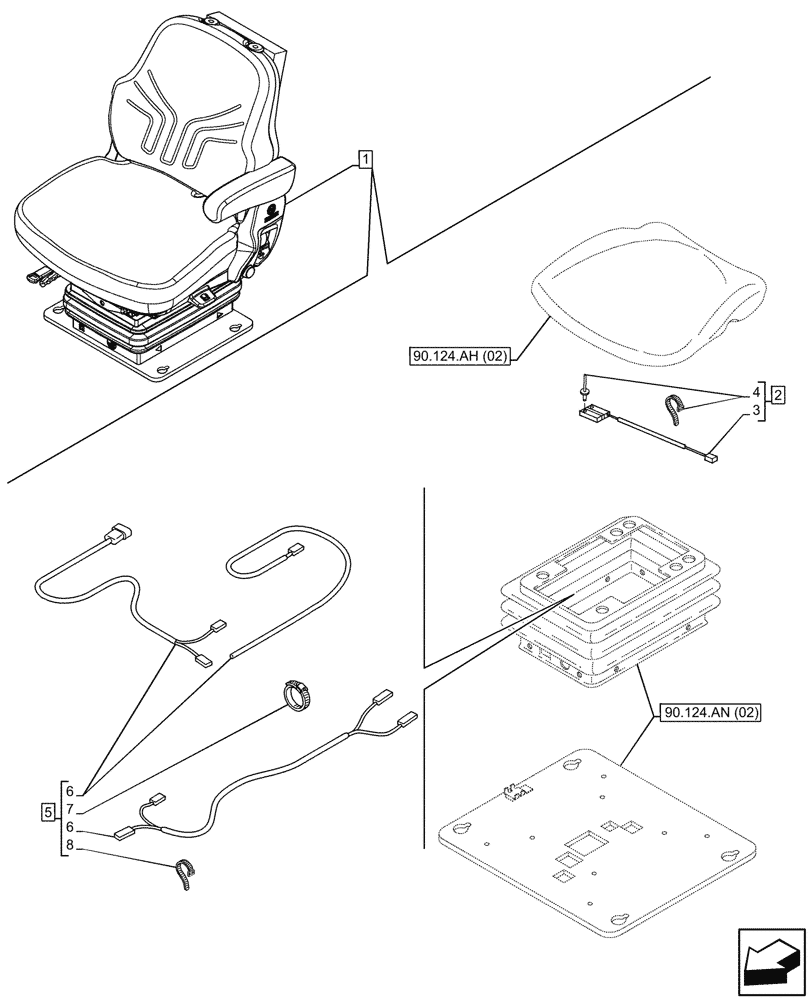

Схема запчастей Case IH MAXXUM 145 - (55.512.CQ[02]) - VAR - 391283 - DRIVER SEAT, CONTROL, SWITCH (55) - ELECTRICAL SYSTEMS
90.124.an (02)
6
7
3
2
5
4
6
1
8
90.124.ah (02)

Артикул

Название

Примечание

Количество

1

47725120

DRIVER SEAT

ASSY, Fabric, Confetti Wheat, Incl 2 - 8

1шт.

See also Driver Seat Components in Figure 90.124.AD (04), 90.124.AH (04), 90.124.AK (04), 90.124.AL (04), 90.124.AM (07), 90.124.AM (08), 90.124.AN (01), 90.151.AD (04)

1шт.

2

84525783

SWITCH

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Switch, Incl in 2

1шт.

4

84191201

SET OF PARTS

1шт.

5

47897090

WIRE HARNESS

ASSY, Incl 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Wire, Incl in 5

1шт.

7

82035055

CABLE TIE,M4.7 x 204

1шт.

8

87567529

CABLE TIE,200mm L

7шт.

Выбрано товаров: 9
