Запчасти Case IH MAXXUM 145 (05.100.02) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE

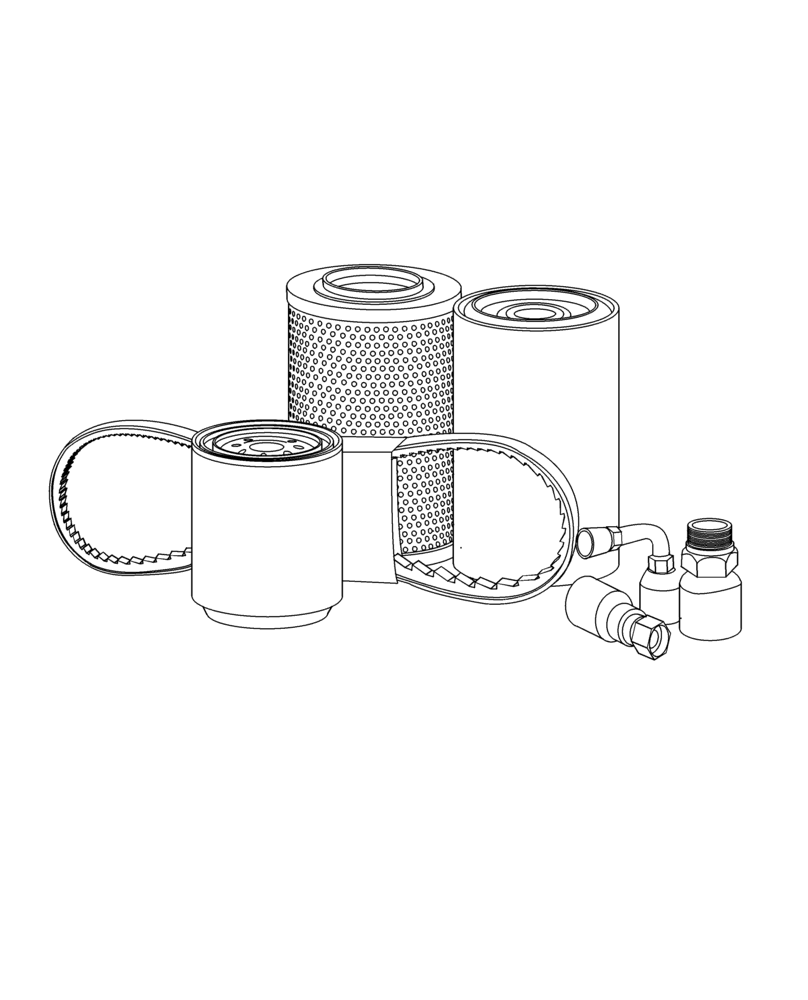

Схема запчастей Case IH MAXXUM 145 - (05.100.02) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE

Артикул

Название

Примечание

Количество

1

4894139

PLUG,Hex Soc, M22 x 1.5

Engine Oil Pan

1шт.

2

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

Engine Oil Pan Drain Plug

1шт.

3

4895202

FILLER CAP

Engine Oil

1шт.

4

4895296

SEALING RING,30mm ID x 48mm OD x 3mm Thk

Engine Oil Filler Cap

1шт.

5

2856350

SENSOR

Engine Water Temperature

1шт.

6

2852157

SENSOR

Thermostat

1шт.

7

2830734

THERMOSTAT

1шт.

8

87803109

GASKET

for Thermostat P/N 2830734

1шт.

9

84322388

THERMOSTAT

1шт.

10

2853552

SENSOR

Pressure, Engine Oil Pump

1шт.

11

4897242

SENSOR

Engine Speed Rate

1шт.

12

2859674

SENSOR,Oil Pressure

Pressure & Temperature, Engine Oil

1шт.

13

4897224

SENSOR

1шт.

14

84043184

SENSOR

Clogging Indicator

1шт.

15

87482355

SENSOR

Temperature, on Air Cleaner

1шт.

16

47520143

SENSOR,12V

Urea Quality

1шт.

17

87369250

SWITCH

Black, Transmission

1шт.

18

87369251

SWITCH ASSY

Grey, Transmission

1шт.

19

87564694

PROBE

Temperature, Transmission Oil

1шт.

20

87564684

SWITCH ASSY

Pressure, Transmission Oil

1шт.

21

82028133

SENSOR,3/8"-18

Temperature, Transmission Oil

1шт.

22

87605247

POTENTIOMETER,4000 Ohm, 13.5 VDC

1шт.

23

87395493

PRESSURE SWITCH

Pressure, Transmission Oil

1шт.

24

82025340

RESTRICTION SWITCH

Vacuum

1шт.

25

84169162

SENSOR

Speed, Transmission

1шт.

26

84243033

SENSOR

CVT Transmission

1шт.

27

82017873

SENSOR

Pressure & Temperature

1шт.

28

82029779

SENDER UNIT

Pressure, Engine Oil

1шт.

29

87745841

PRESSURE SWITCH

Engine Oil

1шт.

30

82033971

FUSE,100A, Maxi, Violet

1шт.

31

87283179

BULB,H4, 12V, 60/55W

Headlamp

1шт.

32

139119A1

BULB,#886, 12V, 50W

Headlamp

1шт.

33

10857790

BULB,R10W, 12V, 5W

1шт.

34

44995162

BULB,T-3 1/4, 12.8V, 50W

Worklamp

1шт.

35

9703399

BULB,H3, 12V, 55W

1шт.

36

14148090

BULB,PY21W, 12V, 21W

Tail/Turn Signal

1шт.

37

14144690

BULB,P21/5W, 12V, 21/5W

Tail/Stop Signal

1шт.

38

82013124

RELAY,12V, 30A

1шт.

39

529068

BULB,#1156, 12V, 21W

1шт.

40

9847313

BULB,#894, 12V, 37.5W

1шт.

41

82012872

RELAY,70A

Ignition

1шт.

42

87561528

SWITCH ASSY

1шт.

43

82030144

IGNITION KEY

1шт.

44

87304226

RELAY,12V, Combined, Black

Wiper Module

1шт.

45

84543528

RELAY,12V, 20A, Micro

1шт.

46

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

1шт.

47

87577636

FLASHER UNIT

EU-ROW

1шт.

48

84414345

FLASHER UNIT

NA only

1шт.

49

82023624

FUSE,250A, Mega

1шт.

50

84174070

FUSE,30A, Orange

1шт.

51

11055890

FUSE,80A, Maxival, Neutral

1шт.

52

87390344

FUSE,30A, MIDIVAL

Orange

1шт.

53

84320118

FUSE,40A, Midival

Green

1шт.

54

10402190

FUSE,30A, Mini

1шт.

55

10401290

FUSE,25 amp Mini

1шт.

56

10401190

FUSE,20A, Mini, Yellow

1шт.

57

87524877

FUSE,15A, Mini, Blue

1шт.

58

87522597

FUSE,10A, Mini, Red

1шт.

59

84253578

FUSE,20A

1шт.

60

82030798

RELAY,12V, 70A

1шт.

61

87494632

PRESSURE SWITCH,M12 x 1.5

1шт.

62

87384755

SWITCH ASSY

Pressure, Trailer Brake

1шт.

63

82014329

SWITCH

1шт.

64

87564762

SENSOR

1шт.

65

47132449

SWITCH

Brake

1шт.

66

82005257

SWITCH ASSY

Park Brake

1шт.

67

84576869

RELAY,12V, 250A

Battery Disconnect Switch

1шт.

Выбрано товаров: 67
