Запчасти Case IH MAXXUM 145 (05.100.01) - INITIAL STOCKING LIST (LIST A) (05) - SERVICE & MAINTENANCE

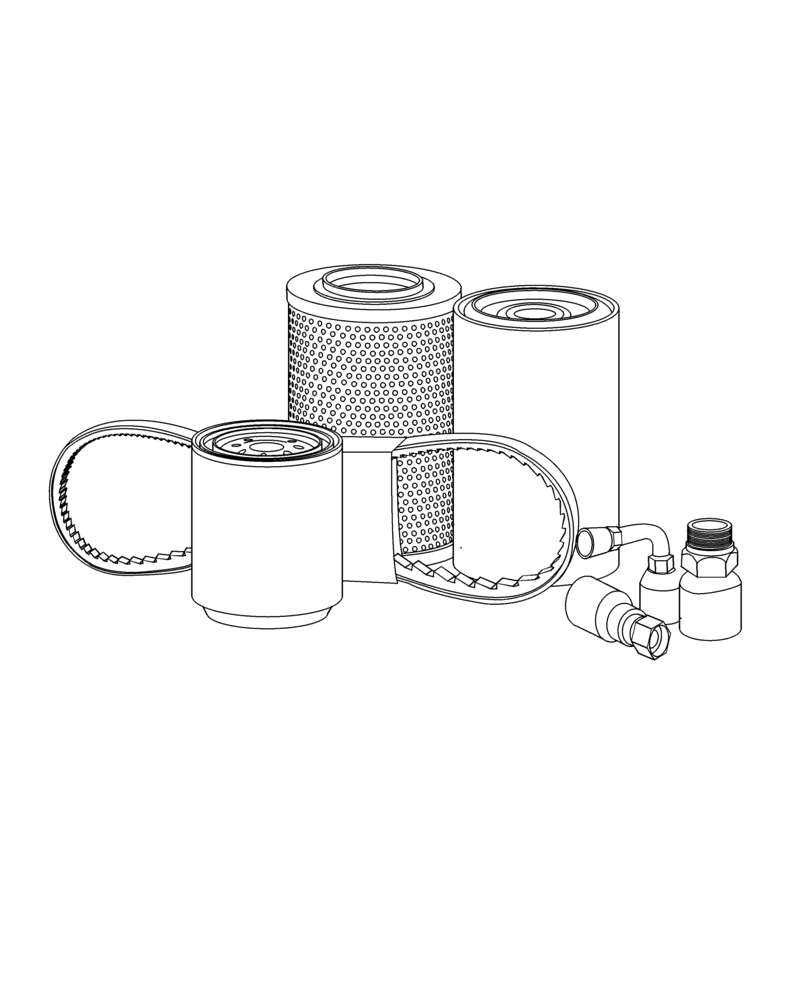

Схема запчастей Case IH MAXXUM 145 - (05.100.01) - INITIAL STOCKING LIST (LIST A) (05) - SERVICE & MAINTENANCE

Артикул

Название

Примечание

Количество

1

87682990

AIR FILTER,Primary, 105.9mm ID x 207.6mm OD x 409.5mm L

Primary

1шт.

2

87683000

AIR FILTER,Safety, 108.5mm OD x 403.1mm L

Safety

1шт.

3

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

for High Roof

2шт.

4

87726695

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

for Low Roof

2шт.

5

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

1шт.

6

87708150

HYDRAULIC OIL FILTER,Filter & Seal

Suction, 32 Micron

1шт.

7

87588814

HYDRAULIC OIL FILTER,151mm L

Spin-on, CVT Transmission Manifold

1шт.

8

47364243

FILTER

DEF/ADBLUE™, on Denox Supply Module

1шт.

9

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

1шт.

10

47760847

ELEMENT

Engine Oil, Closed Crankcase Ventilation (CCV)

1шт.

11

47509565

FILTER

Spin-on, Water Separator, on Engine

1шт.

12

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

Spin-on, on Engine

1шт.

13

A77938

V-BELT,3.56 mm W x 1549.40 mm L, 8 Ribs

Main Drive

1шт.

14

84344776

V-BELT,14mm W x 940mm L, 4 Ribs

A/C Compressor

1шт.

15

84536660

V-BELT,14mm W x 1065mm L, 4 Ribs

Pneumatic Trailer Air Brake

1шт.

Выбрано товаров: 15
