Запчасти Case IH MAXXUM 145 (25.122.AL[02]) - VAR - 758422, 758423, 758427, 758428 - FRONT AXLE, SUSPENDED, CONTROL VALVE, SUPPORT (25) - FRONT AXLE SYSTEM

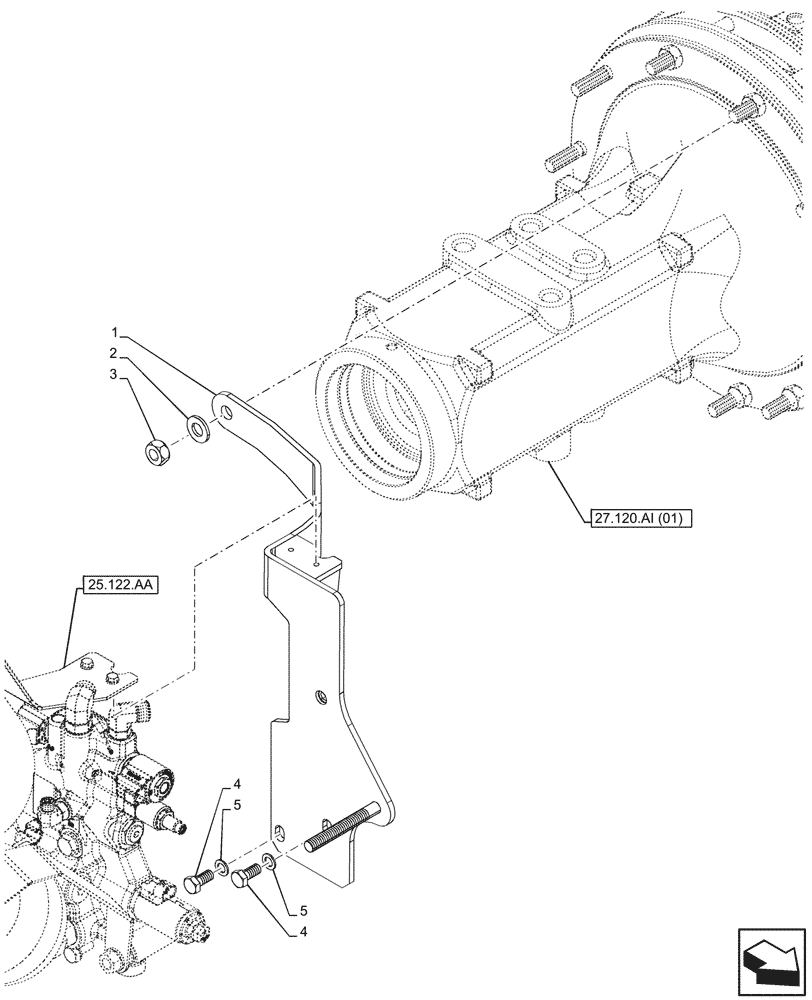

Схема запчастей Case IH MAXXUM 145 - (25.122.AL[02]) - VAR - 758422, 758423, 758427, 758428 - FRONT AXLE, SUSPENDED, CONTROL VALVE, SUPPORT (25) - FRONT AXLE SYSTEM
27.120.ai (01)
3
2
4
5
1
4
5
25.122.aa

Артикул

Название

Примечание

Количество

1

47822320

BRACKET

1шт.

2

13550624

WASHER,14.4mm ID x 28mm OD x 3mm Thk

1шт.

3

12164024

NUT,Hex, M14 x 1.5mm Pitch, Cl 10, DAC

1шт.

4

87520953

SCREW,Hex, M10 x 22mm, Cl 8.8

2шт.

5

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

2шт.

Выбрано товаров: 5
