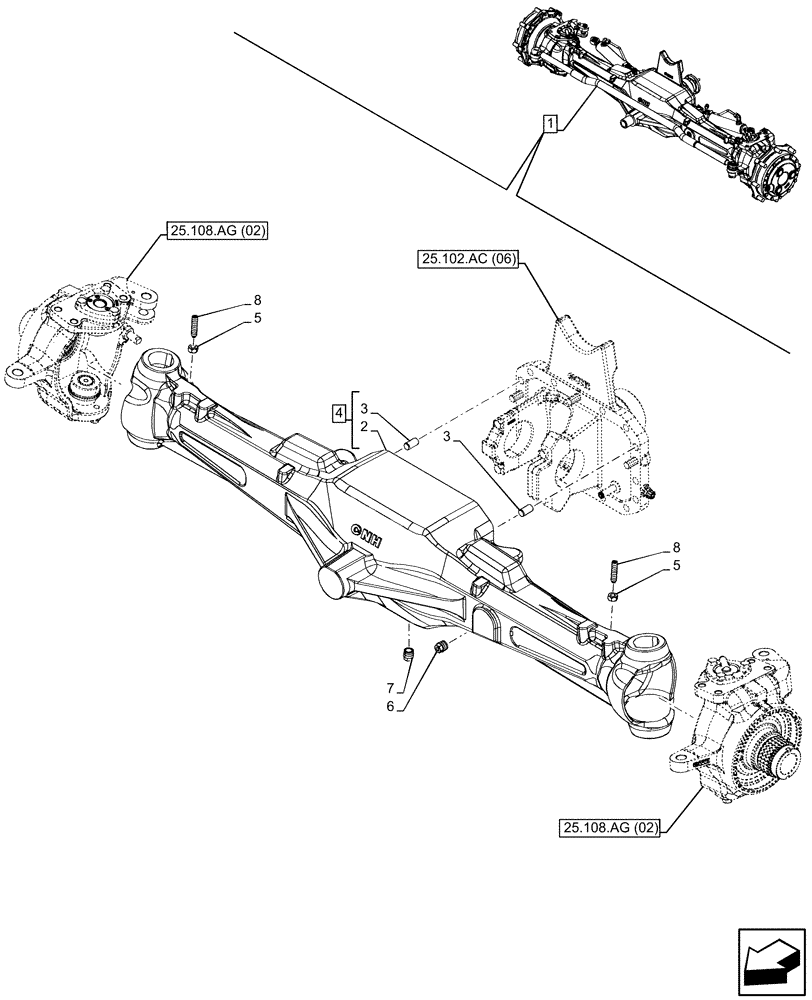

Запчасти Case IH MAXXUM 145 (25.100.AD[02]) - VAR - 758422 - SUSPENDED FRONT AXLE WITH HYDR. DIFF. LOCK & STRG SENSOR, HOUSING (25) - FRONT AXLE SYSTEM

1

84181140

LIVE FRONT AXLE

ASSY, Incl 2 - 8

1шт.

See also Axle Components in Figure 25.100.AA (02), 25.108.AA (02), 25.108.AB (03), 25.108.AG (02), 25.108.AN (02), 41.216.AN (02), 55.047.AA (02)

1шт.

2

87633183

AXLE HOUSING

1шт.

3

5174376

DOWEL,M16 x 30

2шт.

4

87633190

AXLE HOUSING

ASSY, Incl 2, 3

1шт.

5

16101511

NUT,M12 x 1.25, Cl 8

2шт.

6

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

1шт.

7

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

8

87316865

SET SCREW,M12 x 1.25 x 53mm

2шт.
