Запчасти Case IH MAXXUM 145 (05.100.04[03]) - MAINTENANCE PARTS - FUSES (05) - SERVICE & MAINTENANCE

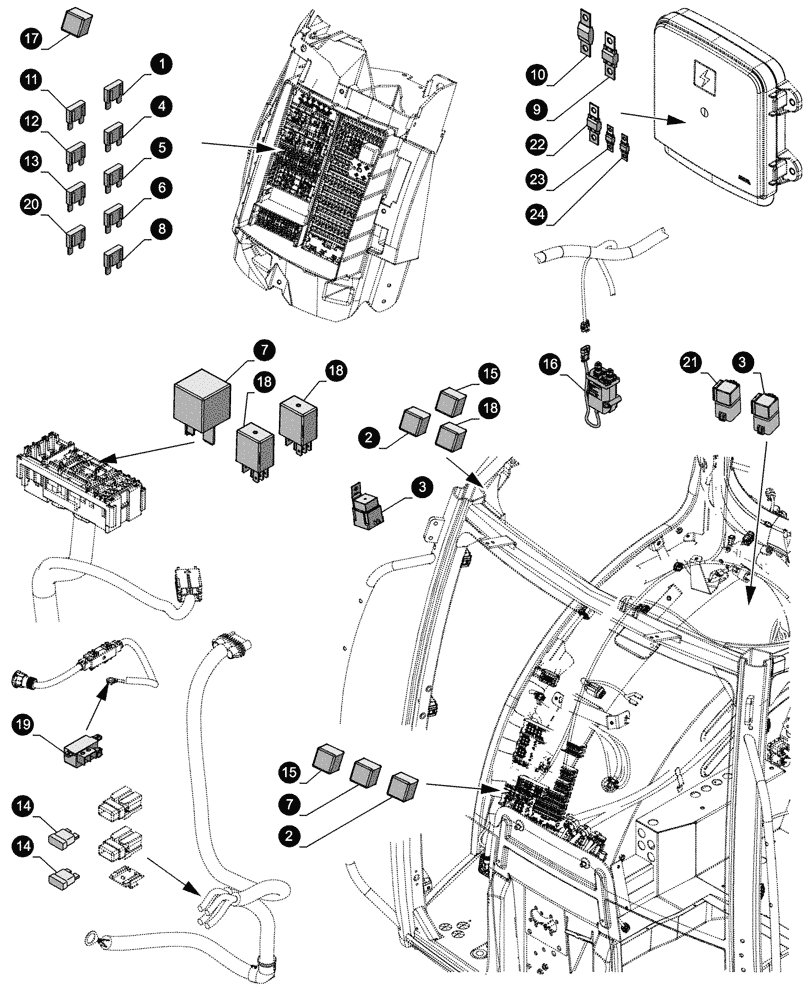

Схема запчастей Case IH MAXXUM 145 - (05.100.04[03]) - MAINTENANCE PARTS - FUSES (05) - SERVICE & MAINTENANCE
3
8
6
16
9
20
14
10
18
3
18
24
4
15
2
12
18
19
21
2
23
22
11
5
1
7
17
15
14
13
7

Артикул

Название

Примечание

Количество

1

84153830

FUSE,5A, Mini, Beige

5A, Minival

1шт.

Valid with Var. 391828, 394835, 758441

1шт.

2

82013124

RELAY,12V, 30A

12V, 30A

1шт.

Valid with Var. 390643, 394835, 758480, 758481, 390793, 758494, 758493

1шт.

3

82017871

RELAY,12V, 20A

12V, 35A, Maxival

1шт.

Valid with Var. 391610, 758479, 758481, 743702, 758352, 758353, 758354, 758344, 396247, 758442, 758549, 391828, 758441, 394835, 743795, 758561, 758624, 743812

1шт.

4

84127814

FUSE,80A, Maxival, Natural

20A

1шт.

Valid with Var. 391828, 394835, 758441

1шт.

5

84127705

FUSE,25A, Mini, White

25A, Microval

1шт.

Valid with Var. 391828, 394835, 758441

1шт.

6

84127708

FUSE,30A, Mini, Green

30A, Microval, Green

1шт.

Valid with Var. 391828, 394835, 758441

1шт.

7

82030798

RELAY,12V, 70A

12V, 70A

1шт.

Valid with Var. 394835, 758480, 758481

1шт.

8

82033971

FUSE,100A, Maxi, Violet

100A, Maxival

1шт.

Valid with Var. 394835

1шт.

9

82023624

FUSE,250A, Mega

250A, Megaval

1шт.

Valid with Var. 390510, 758407, 758409

1шт.

10

10401290

FUSE,25 amp Mini

25A, Minival

1шт.

Valid with Var. 390510, 758407, 758409

1шт.

11

10401190

FUSE,20A, Mini, Yellow

20A, Minival, Yellow

1шт.

Valid with Var. 391828, 394835, 758441

1шт.

12

87524877

FUSE,15A, Mini, Blue

15A, Minival, Blue

1шт.

Valid with Var. 391828, 394835, 758441

1шт.

13

87522597

FUSE,10A, Mini, Red

10A, Minival, Red

1шт.

Valid with Var. 391828, 394835, 758441

1шт.

14

87689644

FUSE,30A, Blade/Uni

30A

1шт.

Valid with Var. 390510, 758407

1шт.

15

82013124

RELAY,12V, 30A

12V, 30A

1шт.

Valid with Var. 390643, 390793, 394835, 758480, 758481, 758493, 758494

1шт.

16

84576869

RELAY,12V, 250A

12V, 250A

1шт.

Valid with Var. 758409

1шт.

17

87304226

RELAY,12V, Combined, Black

12V

1шт.

Valid with Var. 394835

1шт.

18

84543528

RELAY,12V, 20A, Micro

12V, 20A

1шт.

Valid with Var. 390510, 758407, 394835, 744784, 744785, 390661, 392208, 743726, 744940, 758493

1шт.

19

86619908

RELAY,12V, 150A

30A, Orange

1шт.

Valid with Var. 758401, 758402, 758403

1шт.

20

84157159

FUSE,40A, Maxi, Orange

40A, Maxival

1шт.

Valid with MAXXUM 115-MULTICONTROLLER TRACTOR - TIER 4B, MAXXUM 125-MULTICONTROLLER TRACTOR - TIER 4B, MAXXUM 135-MULTICONTROLLER TRACTOR - TIER 4B, MAXXUM 145-MULTICONTROLLER TRACTOR - TIER 4B, MAXXUM 150-MULTICONTROLLER TRACTOR - TIER 4B, 4115 ET PROFI-CLASSIC TRACTOR - TIER 4B, 4125 ET PROFI-CLASSIC TRACTOR - TIER 4B, 4135 ET PROFI-CLASSIC TRACTOR - TIER 4B, 4145 ET PROFI-CLASSIC TRACTOR - TIER 4B, 6145 ET PROFI-CLASSIC TRACTOR - TIER 4B Models

1шт.

Valid with Var. 394835

1шт.

20

87522595

FUSE,7.5A, Mini, Brown

7.5A, Minival

1шт.

Valid with MAXXUM 115-MULTICONTROLLER TRACTOR - TIER 4B, MAXXUM 125-MULTICONTROLLER TRACTOR - TIER 4B, MAXXUM 135-MULTICONTROLLER TRACTOR - TIER 4B, MAXXUM 145-MULTICONTROLLER TRACTOR - TIER 4B, MAXXUM 150-MULTICONTROLLER TRACTOR - TIER 4B Models

1шт.

Valid with Var. 394835

1шт.

21

84271717

RELAY,12V, 50A

12V, 70A

1шт.

Valid with T6.125-TRACTOR - TIER 4B, T6.145-TRACTOR - TIER 4B, T6.155-TRACTOR - TIER 4B, T6.165-TRACTOR - TIER 4B, T6.175-TRACTOR - TIER 4B, T6.180-TRACTOR - TIER 4B, MAXXUM 115-MULTICONTROLLER TRACTOR - TIER 4B, MAXXUM 125-MULTICONTROLLER TRACTOR - TIER 4B, MAXXUM 135-MULTICONTROLLER TRACTOR - TIER 4B, MAXXUM 145-MULTICONTROLLER TRACTOR - TIER 4B, MAXXUM 150-MULTICONTROLLER TRACTOR - TIER 4B ,4115 ET PROFI-CLASSIC TRACTOR - TIER 4B, 4125 ET PROFI-CLASSIC TRACTOR - TIER 4B, 4135 ET PROFI-CLASSIC TRACTOR - T

1шт.

Valid with Var. 743795, 758561, 758624

1шт.

22

82033972

FUSE,250A

250A

1шт.

Valid with Var. 392407, 758407, 758409, 758701

1шт.

23

5173264

FUSE,30A, Maxi, Green

1шт.

Valid with Var. 392407, 758407, 758409, 758701

1шт.

24

5190333

FUSE,40A, Maxi, Orange

1шт.

Valid with Var. 392407, 758407, 758409, 758701

1шт.

Выбрано товаров: 53
