Запчасти Case IH MAXXUM 145 (55.024.AA[02]) - VAR - 394835 - TRANSMISSION, HARNESS (55) - ELECTRICAL SYSTEMS

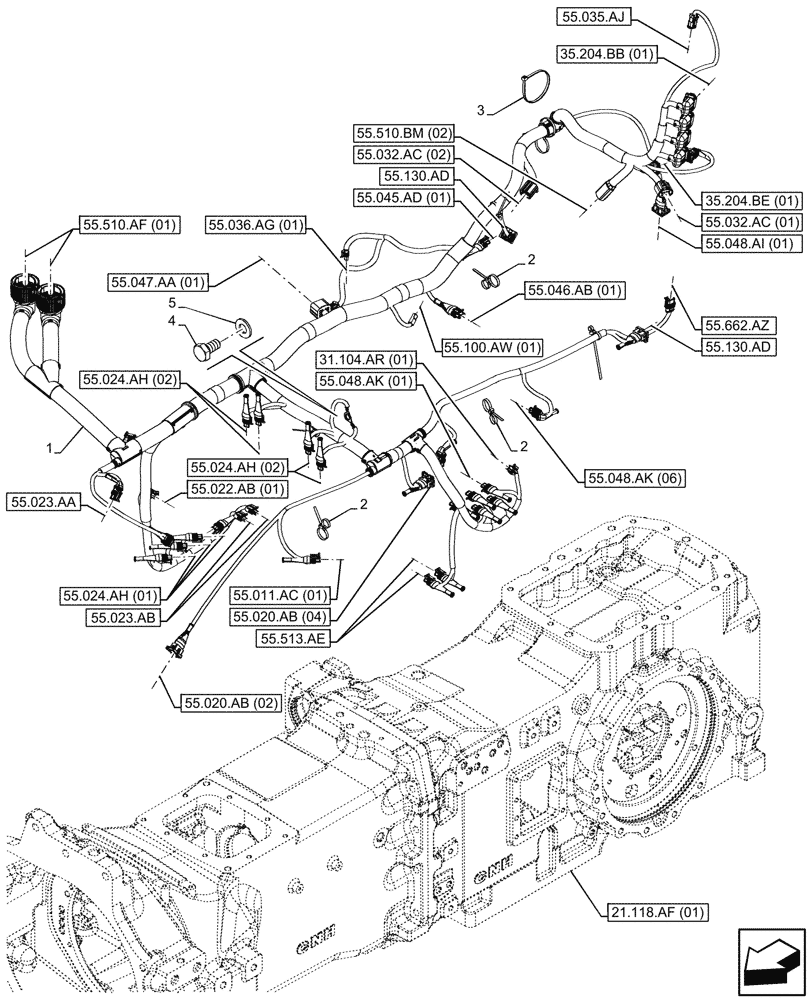

Схема запчастей Case IH MAXXUM 145 - (55.024.AA[02]) - VAR - 394835 - TRANSMISSION, HARNESS (55) - ELECTRICAL SYSTEMS
55.048.ak (01)
2
55.047.aa (01)
1
2
3
2
5
4
55.513.ae
55.011.ac (01)
55.100.aw (01)
55.510.af (01)
35.204.be (01)
35.204.bb (01)
55.036.ag (01)
55.023.ab
31.104.ar (01)
55.024.ah (01)
55.032.ac (02)
55.048.ak (06)
55.032.ac (01)
55.510.bm (02)
55.048.ai (01)
55.662.az
21.118.af (01)
55.022.ab (01)
55.023.aa
55.020.ab (02)
55.045.ad (01)
55.024.ah (02)
55.024.ah (02)
55.020.ab (04)
55.046.ab (01)
55.035.aj
55.130.ad
55.130.ad

Артикул

Название

Примечание

Количество

1

47746439

WIRE HARNESS

Transmission, Years: -20-APR-16

1шт.

1

47888778

WIRE HARNESS

Transmission, Start Year: 21-APR-16

1шт.

2

82013031

CABLE TIE,193mm L

6шт.

3

14560287

CABLE TIE,207.00mm L

2шт.

4

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

5

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

Выбрано товаров: 6
