Case IH
/
Тракторы
/
Сельскохозяйственные
/
MAXXUM
/
(MAXXUM 145) - MULTICONTROLLER TRACTOR - TIER 4B (3/15-)
/
(90) - PLATFORM, CAB, BODYWORK AND DECALS
/

(90.124.AE[08]) - VAR - 758670 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, W/ ELECTROHYDRAULIC REMOTES, MOUNTING

Запчасти Case IH MAXXUM 145 (90.124.AE[08]) - VAR - 758670 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, W/ ELECTROHYDRAULIC REMOTES, MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

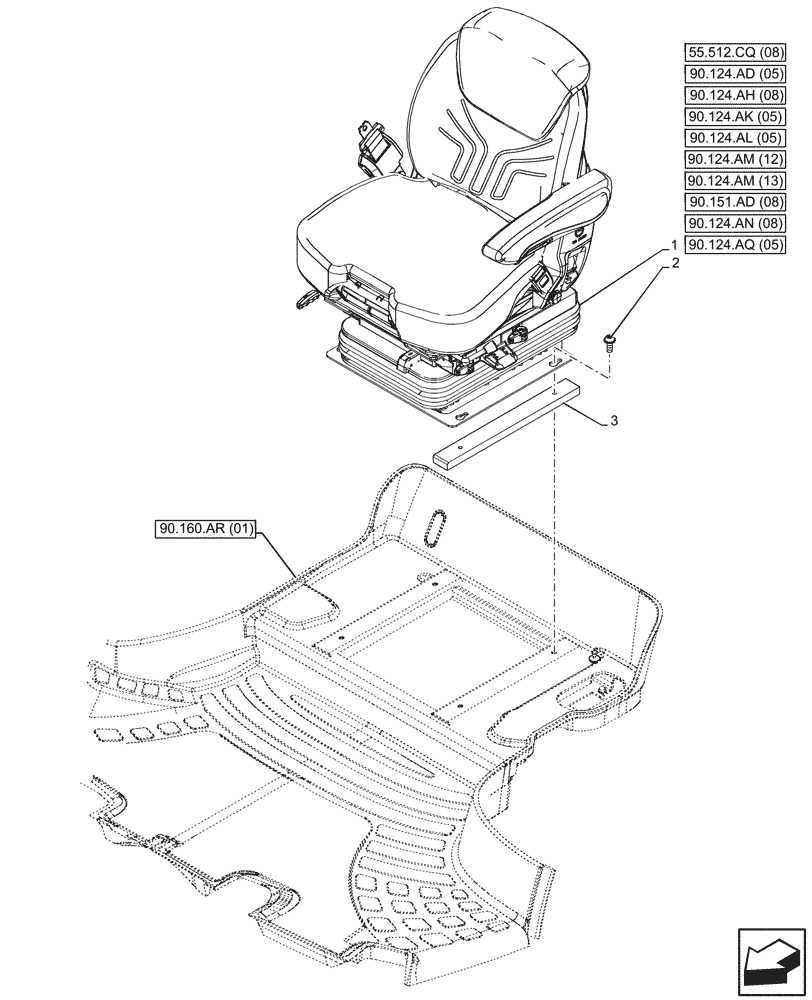

Схема запчастей Case IH MAXXUM 145 - (90.124.AE[08]) - VAR - 758670 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, W/ ELECTROHYDRAULIC REMOTES, MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.151.ad (08)
2
1
3
90.124.ah (08)
90.160.ar (01)
90.124.aq (05)
90.124.am (12)
90.124.al (05)
90.124.an (08)
90.124.ad (05)
90.124.am (13)
90.124.ak (05)
55.512.cq (08)

№

Артикул

Название

Примечание

Количество

1

84171102

SEAT

Deluxe Seat with Low Frequency Suspension with Heated Cushions & Belt Mech Remotes, ASSY

1шт.

2

47875286

SCREW,Torx, Pan HD, M8 x 38mm, Cl 8.8

4шт.

3

47772307

SPACER,422mm L x 45mm W x 20mm Thk

2шт.

Выбрано товаров: 3
