Запчасти Case IH MAXXUM 140 (1.93.3/ Q[01]) - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN (VAR.330709) (10) - OPERATORS PLATFORM/CAB

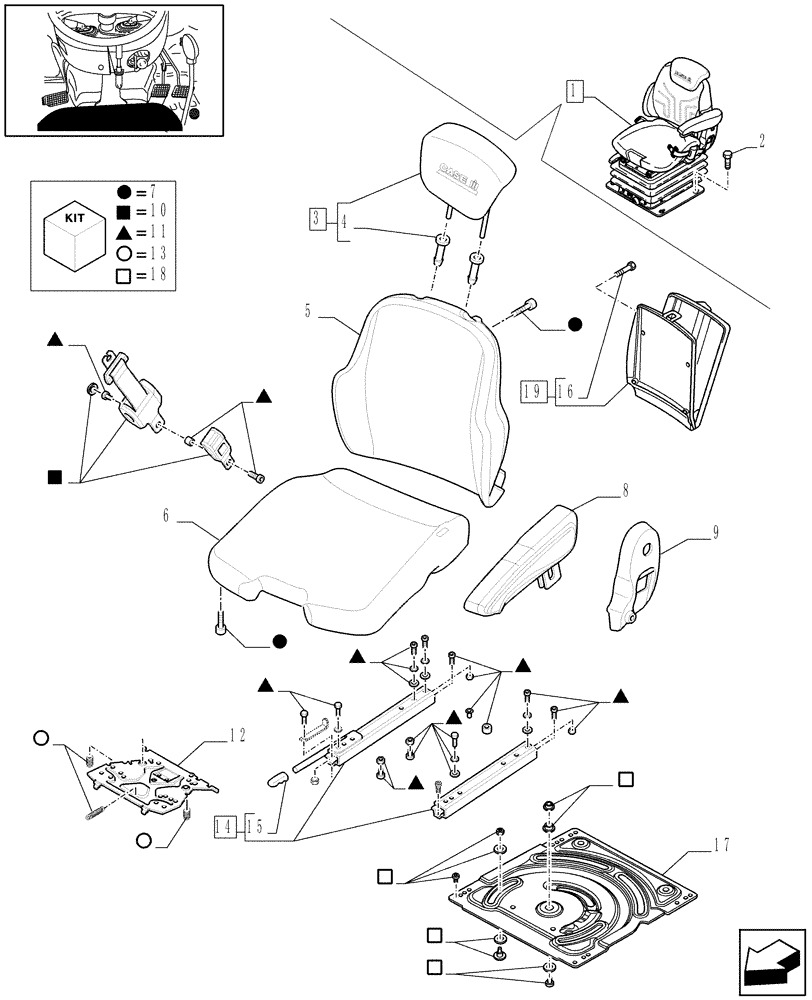

Схема запчастей Case IH MAXXUM 140 - (1.93.3/ Q[01]) - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN (VAR.330709) (10) - OPERATORS PLATFORM/CAB
14
11
11
3
7
18
13
18
4
9
18
17
7
12
16
10
15
11
8
18
10
7
5
1
11
6
18
2
11
11
11
18
19
11
13
11
7
13
10
13
11

Артикул

Название

Примечание

Количество

1

84122197

SEAT

ASSY

1шт.

2

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

4шт.

3

84191100

SEAT HEADREST

1шт.

4

84191112

GUIDE

1шт.

5

84191204

BACKREST

Incl. 7

1шт.

6

84191205

SEAT CUSHION

Incl. 7

1шт.

7

84191200

SET OF PARTS

1шт.

8

82034988

ARMREST

1шт.

9

87331931

COVER

1шт.

10

84191197

SEAT BELT

1шт.

11

84247566

REPAIR KIT

Mounting Parts for P/N 10, 14, 17

1шт.

12

84191141

PLATE

Incl. 13

1шт.

13

84191201

SET OF PARTS

1шт.

14

84247565

SLIDE GUIDE

1шт.

15

9971715

HANDLE

1шт.

16

84247569

REPAIR KIT

1шт.

17

84247568

REPAIR KIT

Incl.18

1шт.

18

1-34-751-712

SET OF PARTS

1шт.

19

71491415

UTILITY HOLDER

1шт.

Выбрано товаров: 19
