Запчасти Case IH MAXXUM 140 (1.93.3/ G[03]) - DELUXE SEAT WITH MECHANICAL SUSPENSION. OPS AND BELTS - BREAKDOWN - W/CAB - D5518 (10) - OPERATORS PLATFORM/CAB

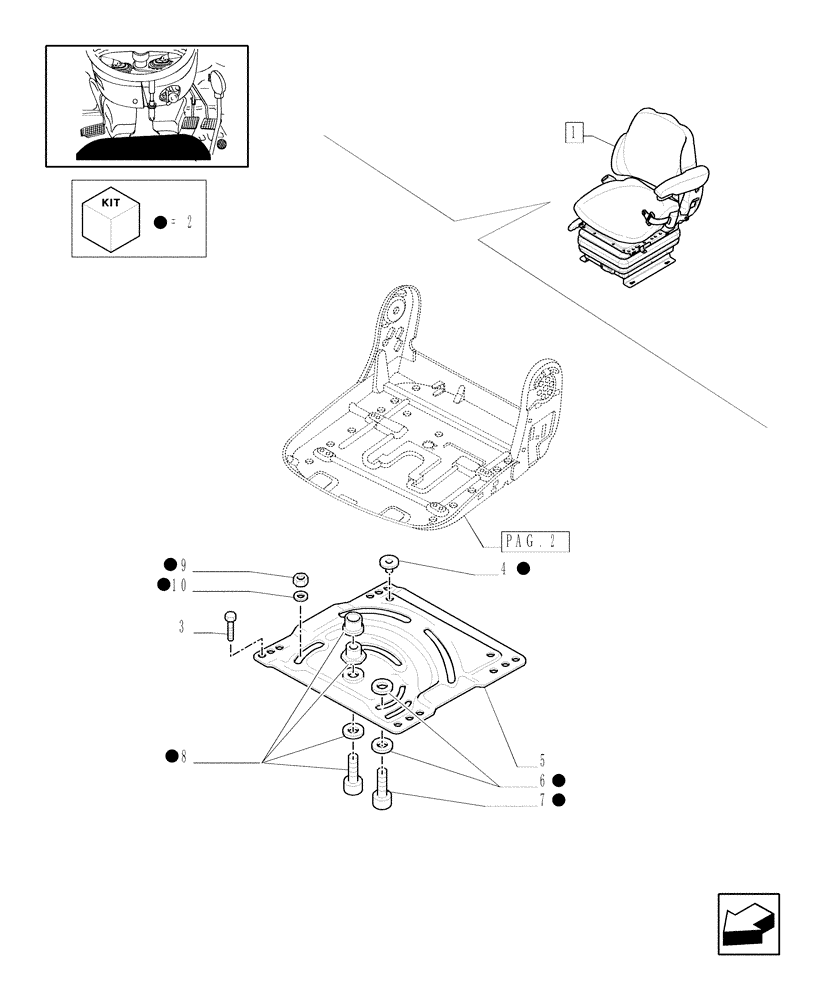

Схема запчастей Case IH MAXXUM 140 - (1.93.3/ G[03]) - DELUXE SEAT WITH MECHANICAL SUSPENSION. OPS AND BELTS - BREAKDOWN - W/CAB - D5518 (10) - OPERATORS PLATFORM/CAB
3
2
1
g
4
2
5
9
2
2
6
2
2
2
2
p
7
.
10
a
8

Артикул

Название

Примечание

Количество

1

87579093

DRIVER SEAT

ASSY

1шт.

2

1-34-751-712

SET OF PARTS

Add-on Parts for Swivel

1шт.

3

82034882

SCREW,M8 x 16mm

M8 x 16

4шт.

4

82034862

DISC

2шт.

5

375067A1

SET OF PARTS

Incl. 2

1шт.

6

82034866

WASHER

8шт.

7

84145498

BOLT

4шт.

8

1-34-751-945

SUPPORT

1шт.

9

82034880

NUT,M8

M8

4шт.

10

82034881

WASHER,8.4mm ID

4шт.

Выбрано товаров: 10
