Запчасти Case IH MAXXUM 140 (1.91.4/14) - LOW ROOF CAB W/OPENING FRONT SCREEN AND VISIBILITY PANEL FOR SUSP. CAB W/AC - ELECTRIC COMPONENTS (10) - OPERATORS PLATFORM/CAB

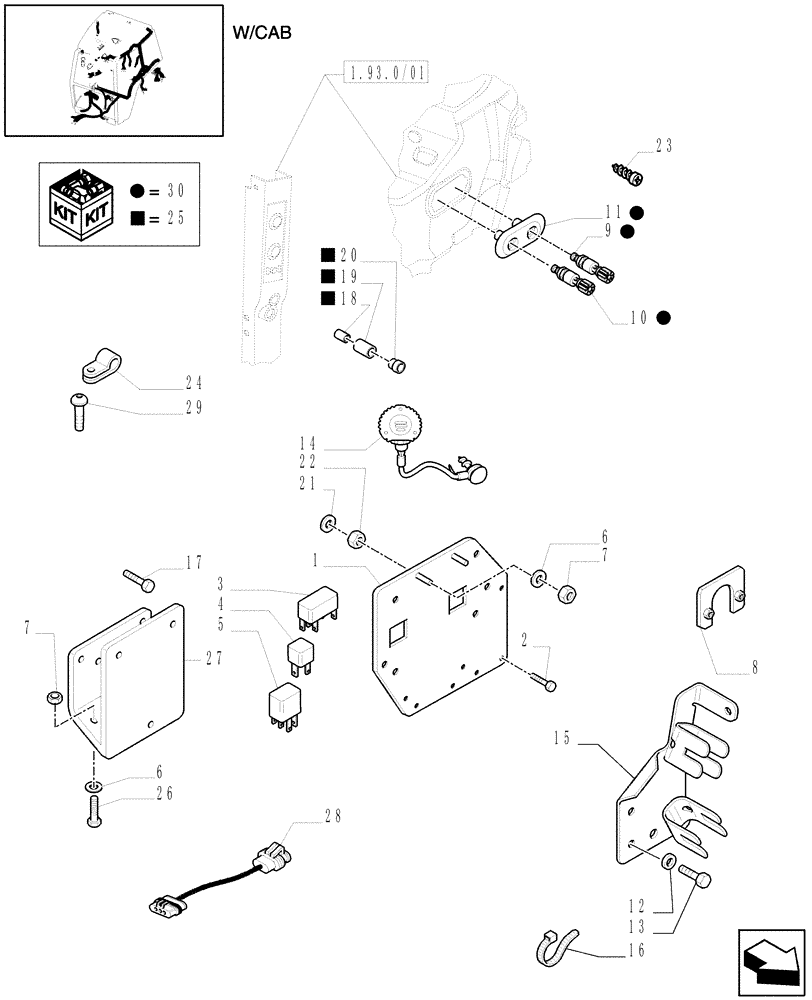

Схема запчастей Case IH MAXXUM 140 - (1.91.4/14) - LOW ROOF CAB W/OPENING FRONT SCREEN AND VISIBILITY PANEL FOR SUSP. CAB W/AC - ELECTRIC COMPONENTS (10) - OPERATORS PLATFORM/CAB
19
29
26
1
15
10
1
1
21
1
1
9
13
1
6
24
3
22
1.93.0/01
18
20
14
7
28
12
1
30
1
23
7
7
16
27
2
8
25
6
5
4
11
1
1

Артикул

Название

Примечание

Количество

1

87325625

SUPPORT

1шт.

2

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

1шт.

3

87304226

RELAY,12V, Combined, Black

Front & Rear Interval Timer

1шт.

4

82013124

RELAY,12V, 30A

30A

2шт.

4

82030798

RELAY,12V, 70A

70A

2шт.

5

82023238

RELAY,12V, 20A

60A/30A

5шт.

6

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

8шт.

7

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

8шт.

8

87313993

HOLDER

1шт.

9

82003172

TERMINAL CONNECTOR

Black

1шт.

10

82003171

TERMINAL CONNECTOR

Red

1шт.

11

82003173

BEZEL

1шт.

12

14496404

WASHER,M6 x 12 x 2 Thk

2шт.

13

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

14

87316393

CAP

1шт.

15

87597230

SUPPORT

1шт.

16

14560287

CABLE TIE,207.00mm L

COLLAR

3шт.

17

83912337

SELF-TAP SCREW,3.5mm OD x 1.3mm Thd x 22mm L

2шт.

18

5148133

CIGARETTE LIGHTER

1шт.

19

5148132

LAMP SOCKET

1шт.

20

5148131

HOUSING

1шт.

21

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

22

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

6шт.

23

15903804

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 13mm

2шт.

24

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

D=26

2шт.

25

84191453

SOCKET,12/24V, 20A

1шт.

25

5148077

CIGARETTE LIGHTER

1шт.

26

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

27

87314581

BRACKET

1шт.

28

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

3шт.

29

83929014

BOOT

M6.3x1.81

2шт.

29

83976489

SCREW,Pan, M5 x 20mm, Cl 4.8

M5x20

2шт.

30

84266120

SOCKET,12V

1шт.

Выбрано товаров: 33
