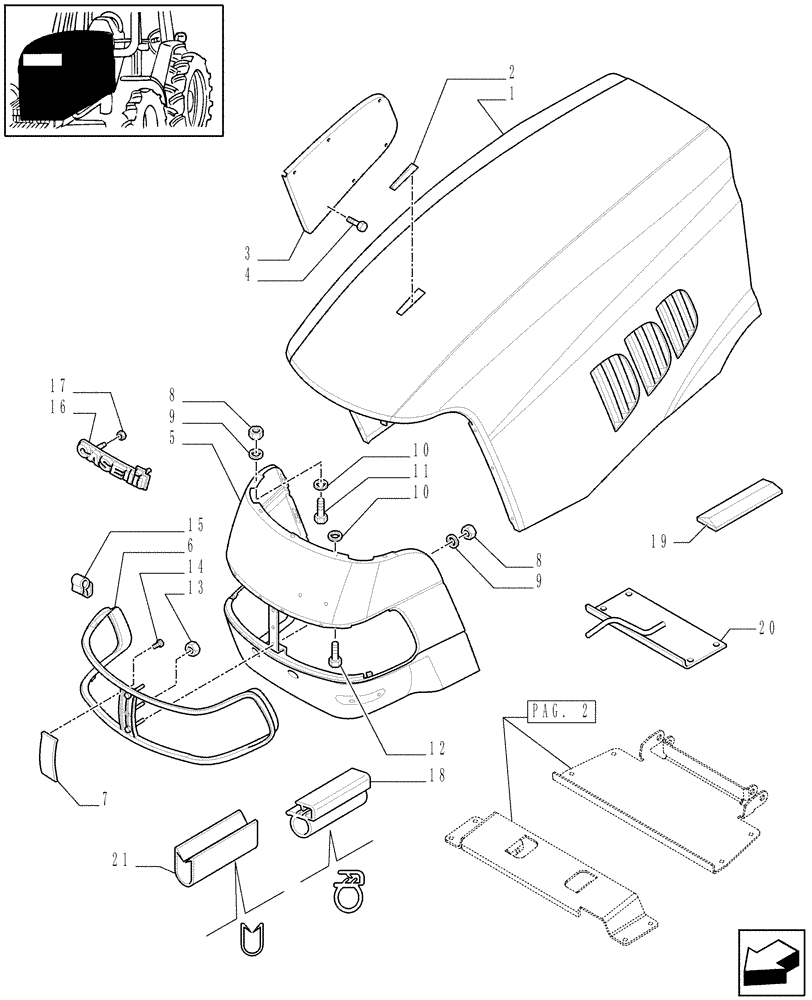

Запчасти Case IH MAXXUM 140 (1.83.0[01A]) - HOOD - HOOD - D6556 - C6650 (08) - SHEET METAL

1

87651067

ENGINE HOOD

, Serial Range: -C6557

1шт.

4 Cyl. Models only

1шт.

1

87651074

ENGINE HOOD

, Serial Range: -C6557

1шт.

6 Cyl. Models only

1шт.

1

84240433

ENGINE HOOD

, Start Serial: D6557

1шт.

4 Cyl. Models only

1шт.

1

84240438

ENGINE HOOD

, Start Serial: D6557

1шт.

6 Cyl. Models only

1шт.

1

84273833

ENGINE HOOD

1шт.

4 Cyl. Models only

1шт.

2

44995044

GUIDE

1шт.

3

87674132

SIEVE

RH

1шт.

3

87674133

SIEVE

LH

1шт.

4

82034112

SELF-TAP SCREW,Pan, M3 x 10mm

12шт.

5

84158005

RADIATOR GRILLE

1шт.

6

87633243

HOLDER

1шт.

7

87734282

RADIATOR GRILLE

PAD

1шт.

8

12574211

NUT,M6 x 1, Cl 8

11шт.

9

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

11шт.

10

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

11шт.

11

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

8шт.

12

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

6шт.

13

14227674

SPRING NUT,B Style, M4 x 14mm L x 0.4mm Thk

4шт.

14

82007240

SCREW,Round Washer, 3mm OD x 1.34mm Thd

4шт.

15

87536288

CLIP

4шт.

16

87716228

EMBLEM

1шт.

17

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

18

84135609

RUBBER STRIP

1шт.

19

44995044

GUIDE

1шт.

20

87314232

BRACKET

1шт.

with 2 WD for 12x12 Trans. (VAR.334405-335405) for Value Version only; with 2 WD for 24x24 Trans. (VAR.330405-331405-332405-333405) for Value and X-Line/Limited Versions

1шт.

21

82036856

MOLDING,355mm L

1шт.

with 2 WD for 12x12 Trans. (VAR.334405-335405) for Value Version only; with 2 WD for 24x24 Trans. (VAR.330405-331405-332405-333405) for Value and X-Line/Limited Versions

1шт.
