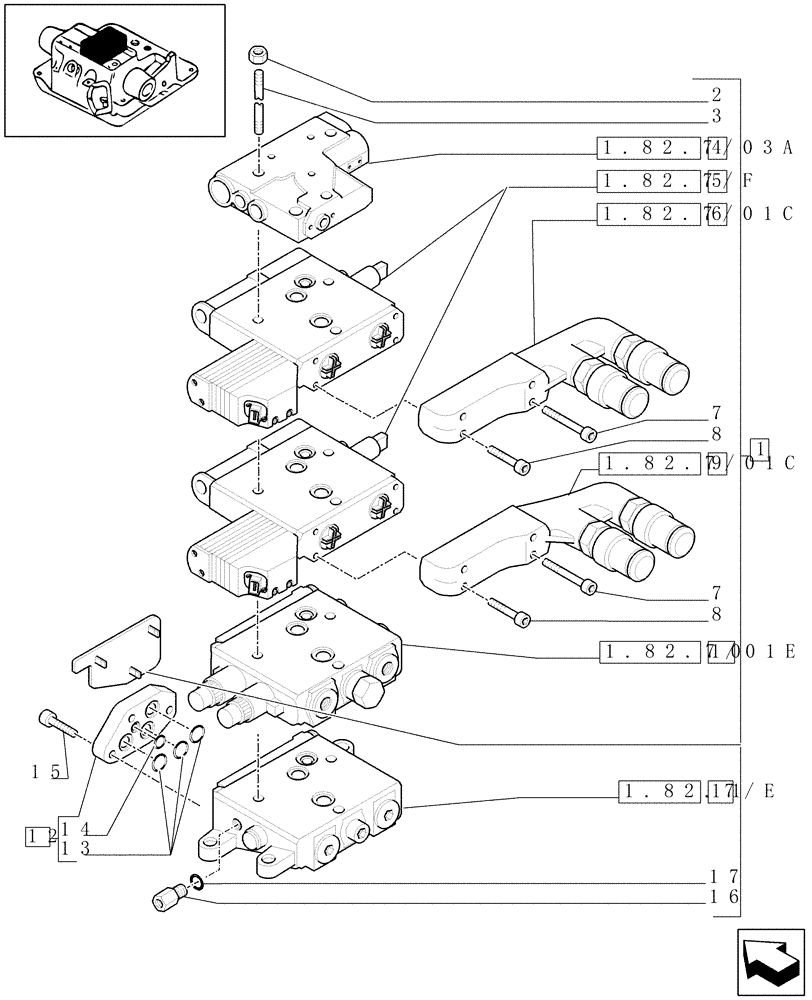

Запчасти Case IH MAXXUM 140 (1.82.7/03[02]) - 2 REAR ELECTRO-HYDRAULIC CONTROL VALVES FOR CCLS PUMP (113 L/MIN) AND EDC (VAR.390853 / 743744) (07) - HYDRAULIC SYSTEM

1

87546171

CONTROL VALVE

1шт.

2 Remote Control Valves Pack "BOSCH"

1шт.

2

5195169

NUT,M8

3шт.

3

5199619

TIE-ROD

3шт.

4

47123078

HYDRAULIC VALVE

ASSY

1шт.

5

84125295

VALVE SECTION,Electronic Control

ASSY

2шт.

5

84125295R

REMAN-HYD VALVE

MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140 all (1/07-)

2шт.

5

84125295C

CORE-VALVE HYD

Return Number

2шт.

6

87381963

QUICK MALE COUPLING

ASSY

1шт.

7

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

8

47129474

HEX SOC SCREW,M6 x 35mm

4шт.

9

87381958

QUICK MALE COUPLING

ASSY

1шт.

10

87546170

CONTROL VALVE

ASSY

1шт.

10

84175671R

REMAN-HYD VALVE

MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140 all (1/07-) Reman for New P/N 87546170

1шт.

10

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

87730706

CONTROL VALVE

ASSY

1шт.

11

87730706R

REMAN-HYD VALVE

MAXXUM 110, MAXXUM 115, MAXXUM 120, MAXXUM 125, MAXXUM 130, MAXXUM 140 ALL (1/07-)

1шт.

11

87730706C

CORE-VALVE HYD

Return Number

1шт.

12

5199101

COVER

1шт.

13

81862872

O-RING,2.4mm Thk x 19.6mm ID

3шт.

14

81862879

O-RING,2.4mm Thk x 7.6mm ID

1шт.

15

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

16

5191704

CHECK VALVE

Incl 17

1шт.

17

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.
