Запчасти Case IH MAXXUM 140 (1.82.7/03[01A]) - 2 REAR ELECTRO-HYDRAULIC CONTROL VALVES FOR CCLS PUMP (113 L/MIN) AND EDC - D6788 (VAR.390729-390853 / 743744) (07) - HYDRAULIC SYSTEM

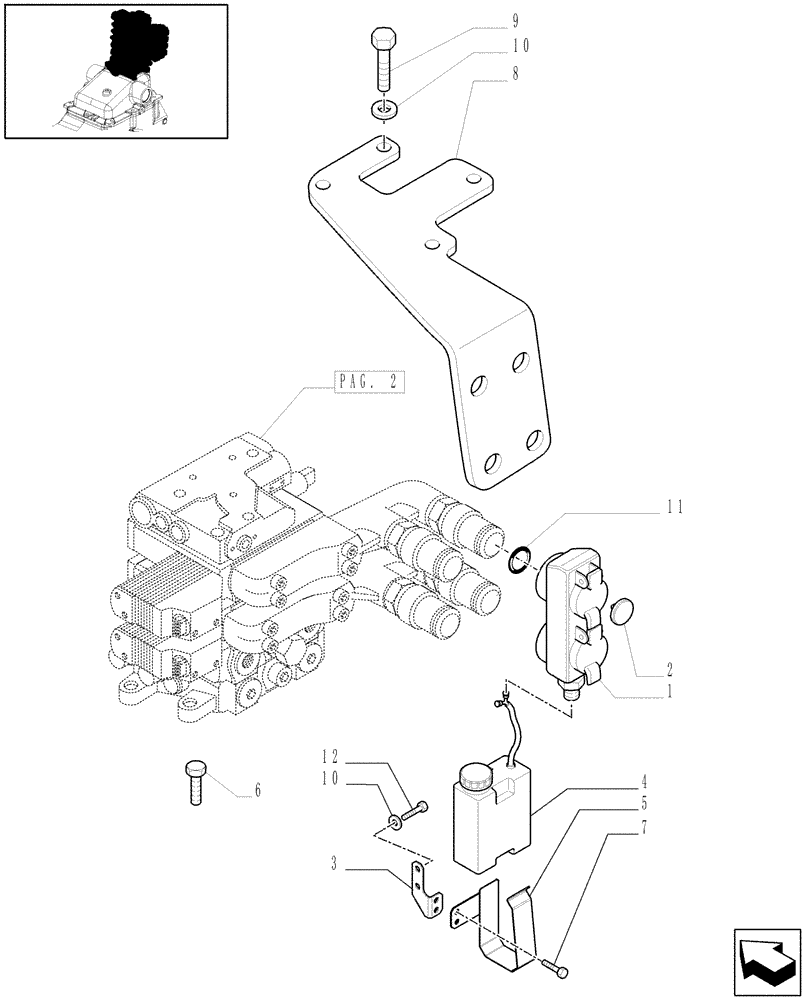

Схема запчастей Case IH MAXXUM 140 - (1.82.7/03[01A]) - 2 REAR ELECTRO-HYDRAULIC CONTROL VALVES FOR CCLS PUMP (113 L/MIN) AND EDC - D6788 (VAR.390729-390853 / 743744) (07) - HYDRAULIC SYSTEM
9
12
3
pag. 2
11
10
5
1
10
4
2
8
6
7

Артикул

Название

Примечание

Количество

1

84293778

DUST CAP

Incl 2, 11, Serial Range: -C7117

2шт.

1

84286360

DUST CAP

Incl 2, 11, Start Serial: D7117

2шт.

2

82029895

DISC,20mm D, Black

Black

4шт.

3

84311423

SUPPORT

1шт.

4

84284864

RESERVOIR, HYDRAULIC

, Serial Range: -C7117

1шт.

4

84287277

RESERVOIR, HYDRAULIC

, Start Serial: D7117

1шт.

5

84312030

SUPPORT

2шт.

6

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

7

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

8

87499713

BRACKET

1шт.

9

86625000

BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd

2шт.

10

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

11

14454580

O-RING,34.65mm ID x 1.78mm

2шт.

12

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 14
