Запчасти Case IH MAXXUM 140 (1.82.1/07[01A]) - CCLS (EDC) ELECTRONIC CONTROL VALVES - CONTROL VALVE PIPES - D6562 (VAR.330853-330856-330862) (07) - HYDRAULIC SYSTEM

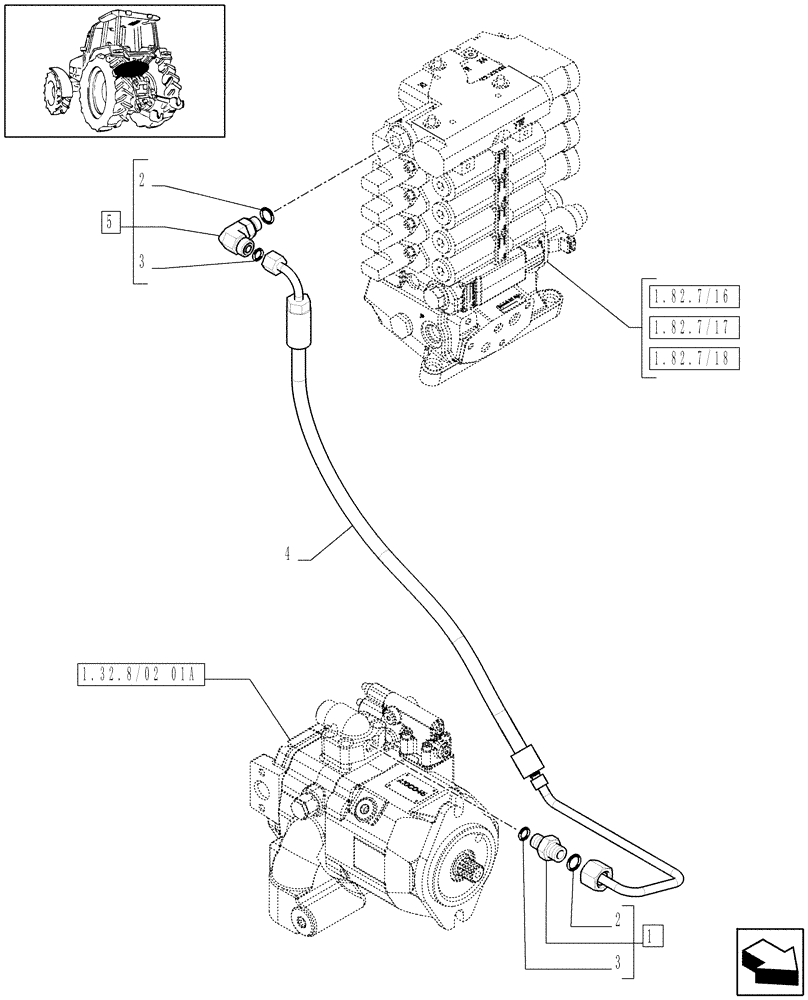

Схема запчастей Case IH MAXXUM 140 - (1.82.1/07[01A]) - CCLS (EDC) ELECTRONIC CONTROL VALVES - CONTROL VALVE PIPES - D6562 (VAR.330853-330856-330862) (07) - HYDRAULIC SYSTEM
3
1
4
1.32.8/02 01a
1.82.7/18
1.82.7/17
1.82.7/16
3
2
5
2

Артикул

Название

Примечание

Количество

1

5196844

HYD CONNECTOR

M14x1.5, 11/16-16

1шт.

2

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

3

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

4

47130532

FLEXIBLE HOSE

11/16-16, MM.890

1шт.

4

84188093

HOSE

1шт.

Only with 3 Electro-hydraulic Rear Remotes, VAR.330856

1шт.

5

5188442

HYD CONNECTOR,11/16-16 ORFS x M14 x 1.5 ORB

11/16-16, M14x1.5

1шт.

Выбрано товаров: 7
