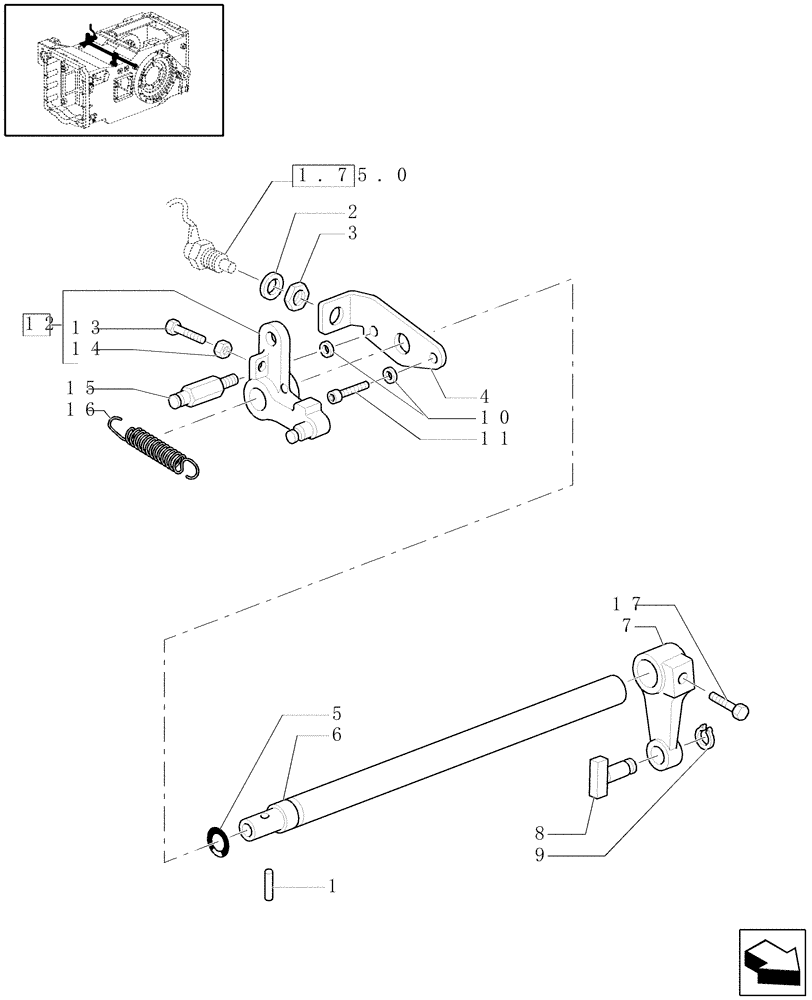

Запчасти Case IH MAXXUM 140 (1.80.1/04[02]) - SYNCHRONIZED POWER TAKE-OFF - LEVERS AND RELATED PARTS (VAR.330802-331802-332802) (07) - HYDRAULIC SYSTEM

1

14604271

PIN,M6 x 32, Coiled

1шт.

2

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

3

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

1шт.

4

47127446

SUPPORT

1шт.

5

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

6

47127553

PIN

1шт.

7

5192254

LEVER

1шт.

8

5192512

BLOCK

1шт.

9

11064171

SPRING CLIP,M10 x 8

1шт.

10

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

11

14360121

HEX SOC SCREW,M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

12

47127684

LEVER

1шт.

13

16043724

BOLT,Hex, M8 x 1.25 x 28mm, Cl 8.8, Full Thd

1шт.

14

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

15

47127576

PIN

1шт.

16

47127609

SPRING

1шт.

17

44013453

SCREW,Hex, M12 x 1.25 x 33mm

1шт.
