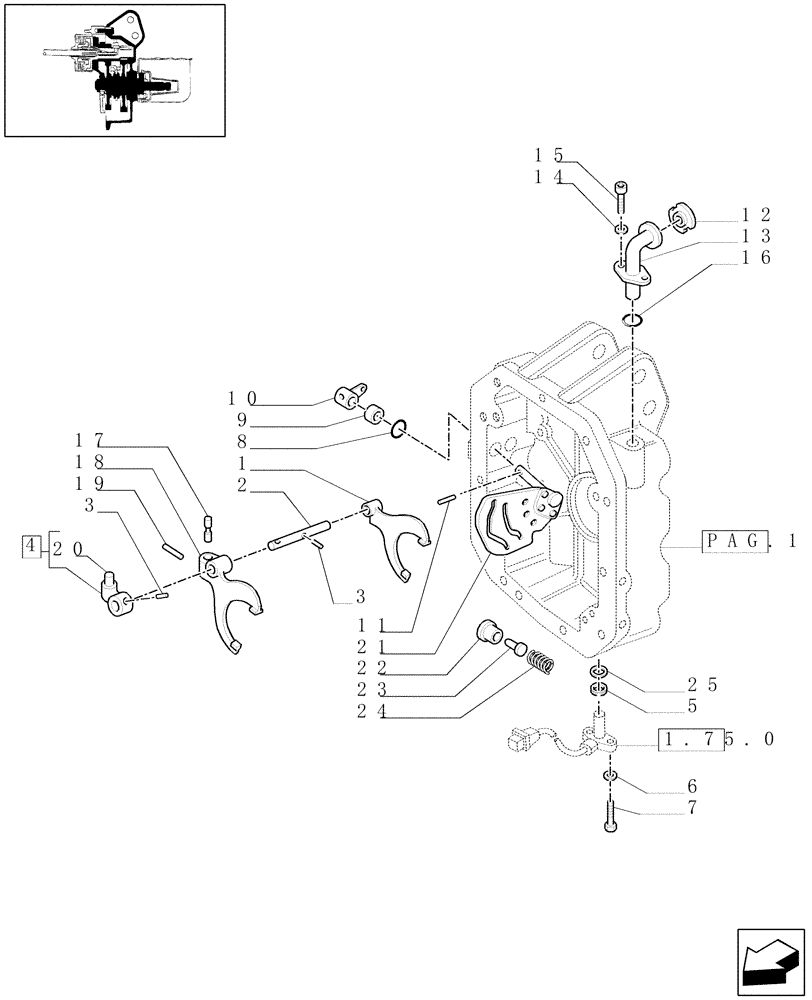

Запчасти Case IH MAXXUM 140 (1.80.1/01[03]) - POWER TAKE-OFF 540/750/1000 RPM - CONTROLS - C5915 (07) - HYDRAULIC SYSTEM

1

5192164

SHIFTER FORK

1шт.

2

5192233

ROD

1шт.

3

13910370

ROLL PIN,6mm OD x 30mm L

2шт.

4

5192242

DOG

1шт.

5

47132789

SEAL,15.5mm ID x 19mm OD x 3mm Thk

1шт.

with Waterproofing, VAR.330448

1шт.

6

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

2шт.

7

10977524

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

2шт.

8

14457581

O-RING,0.799" ID x 0.103" Width

1шт.

9

594832

RING,20.1mm ID x 24.75-24.8mm OD x 6mm Thk

1шт.

10

87341142

LEVER

1шт.

11

14607270

LOCK PIN,M8 x 40, Slotted

1шт.

12

82005372

FILLER CAP,Male, Vented_No Lockable

1шт.

13

5198124

TUBE

1шт.

14

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

15

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

2шт.

16

14458281

O-RING,1.237" ID x 1.443" OD x 0.103"

1шт.

17

5198711

PIN,10mm OD x 35mm L

1шт.

18

5198710

YOKE

1шт.

19

13910670

ROLL PIN,M6 x 40mm OAL, Coiled

1шт.

20

5154545

PIN,10mm OD x 25mm L

10 x 25

1шт.

21

5192246

PIN

1шт.

22

5193100

PLUG,Hex, M14 x 1.5

1шт.

23

5193099

PAWL,8.5mm D x 22.5mm L

1шт.

24

5128251

SPRING,Compression, 8.5mm OD x 20mm L

1шт.

25

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

with Waterproofing, VAR.330448

1шт.
