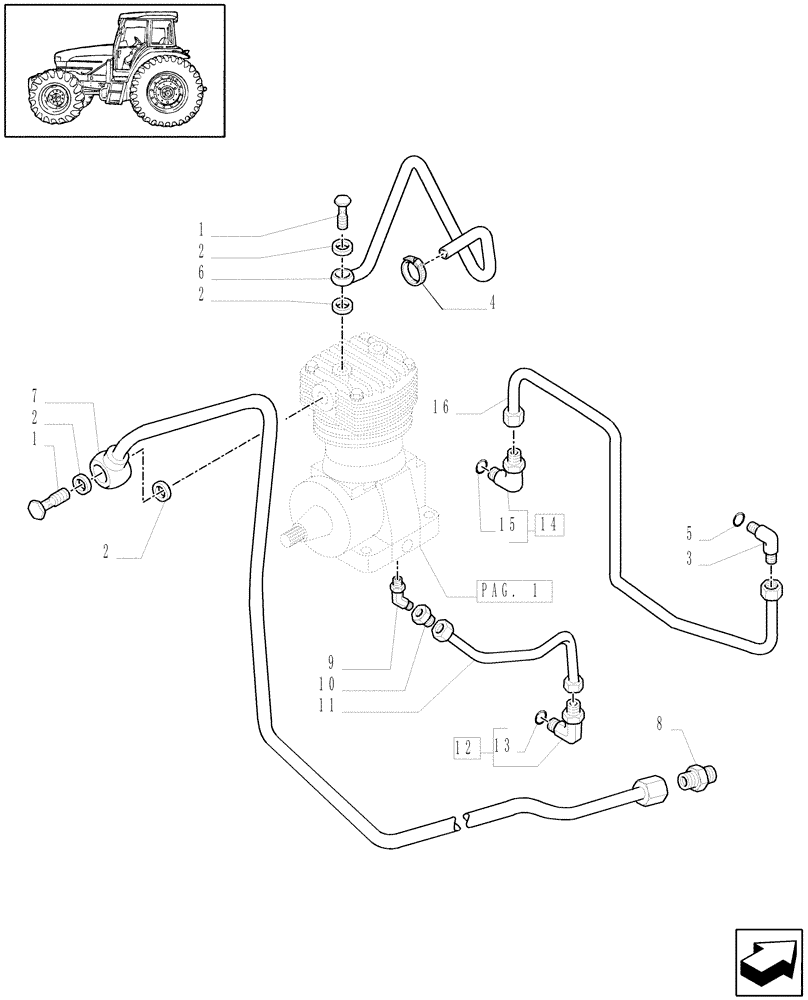

Запчасти Case IH MAXXUM 140 (1.68.6[04B]) - TRAILER AIR BRAKE - PIPES - D5873 (VAR.332727-333727-332737-339737-332739-333739) (05) - REAR AXLE

1

82031550

BANJO BOLT,M26 x 1.50

M26 x 1.5, Serial Range: -C7154

2шт.

1

843385706

, Serial Range: D7154-C7174

2шт.

1

84532344

BANJO BOLT,M26 x 1.5 x 38mm L

, Start Serial: D7144

1шт.

2

82031552

COPPER WASHER,26.1mm ID x 32mm OD x 1.5mm Thk

M26 x 32 x 1.5

4шт.

3

86512933

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

1шт.

4

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

25 x 40 x 9

1шт.

5

87802702

HYD CONNECTOR

7/16"-20, M10 x 1

1шт.

6

87669135

BRAKE LINE

1300MM

1шт.

7

84188756

BRAKE LINE

MAX 115, MAX 125, MAX 140, Serial Range: -C7174

1шт.

7

84532035

BRAKE LINE

, Start Serial: D7174

1шт.

8

82024503

HYD CONNECTOR,7/8"-14 x 7/8"-14

7/8"-14

1шт.

9

87802837

ELBOW,45 Deg, 7/8-14 x M22 x 1.5 ORB

M22 x 1.5, 7/8"-14

1шт.

10

82006545

ADAPTER,3/4" - 16 NPT x 7/8" - 14

7/8"-14, 3/4"-16

1шт.

11

87802678

TUBE,12.00mm OD x 189.00mm, 139.00mm L

3/4"-16

1шт.

12

5157557

ELBOW

3/4"-16, M18 x 1.5

1шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

14

82002502

90 ELBOW,7/16"-20 x M10 x 1

7/16"-20, M10 x 1

1шт.

15

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

16

87802677

TUBE,6.0mm OD x 137.00mm, 50.00mm L

7/16"-20

1шт.
