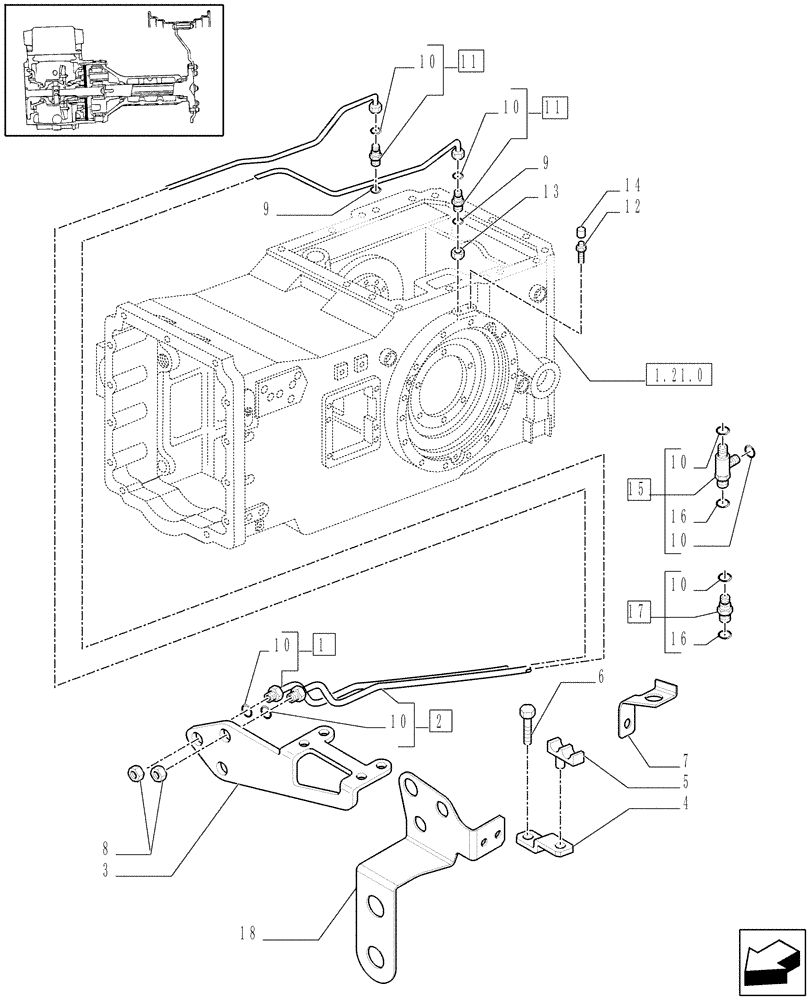

Запчасти Case IH MAXXUM 140 (1.68.5) - BRAKE PIPING (05) - REAR AXLE

1

47131557

TUBE

RH, Incl. 10

1шт.

2

47131555

TUBE

LH, Incl. 10

1шт.

3

47130999

SUPPORT

1шт.

Value and X-Line/Limited Versions only

1шт.

4

5155804

BRACKET

2шт.

5

14575280

SPRING CLIP

2шт.

5

14575580

CLAMP BRACKET

1шт.

6

14362124

SCREW,M10 x 8mm, Cl 8.8

M10 x 8

1шт.

7

47134018

BRACKET

1шт.

8

47131554

NUT

11/16"-16

2шт.

9

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

2шт.

10

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

7шт.

11

47131549

FITTING,M12 x 1.5

11/16"-16, M12x1.5, Incl. 10

2шт.

12

5155682

BLEED SCREW,Bleeder, M12 x 1.25 x 33mm

M12 x 1.25

2шт.

13

10726624

THIN NUT,M18 x 1.5, Cl 04

2шт.

14

5171793

BOOT

2шт.

15

87722406

HYD CONNECTOR

1шт.

16

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

17

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

1шт.

18

84168520

BRACKET

, Start Serial: D6385

1шт.

Multicontroller/Pro Version And MAX 125 X-Line/Limited L/CAB only

1шт.
