Запчасти Case IH MAXXUM 140 (1.42.0[01]) - POWER STEERING DELIVERY AND RETURN PIPES (04) - FRONT AXLE & STEERING

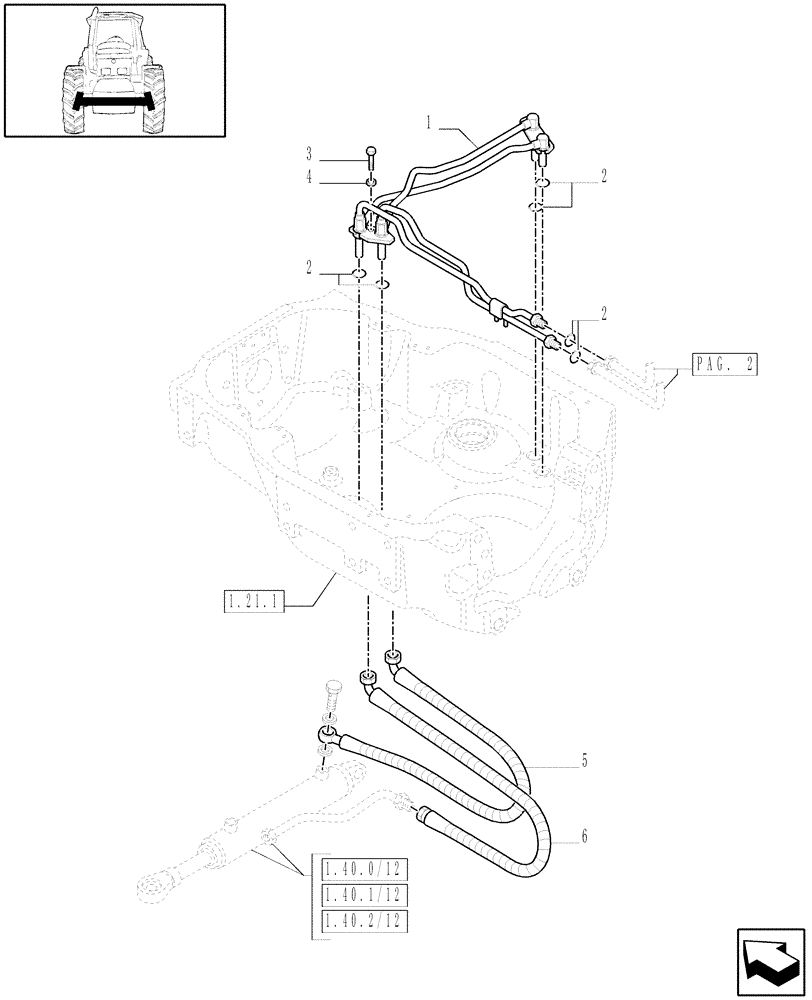

Схема запчастей Case IH MAXXUM 140 - (1.42.0[01]) - POWER STEERING DELIVERY AND RETURN PIPES (04) - FRONT AXLE & STEERING
3
4
1.21.1
1.40.2/12
1.40.1/12
1.40.0/12
pag. 2
2
2
2
5
1
6

Артикул

Название

Примечание

Количество

1

87387916

PRESSURE PIPE

Incl. 2, Serial Range: -C6720

1шт.

1

87699815

HYDRAULIC HOSE

Incl. 2, Start Serial: D6720

1шт.

2

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

90 Duro

6шт.

3

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

4

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

5

87352543

HOSE

, Serial Range: -C5753

2шт.

5

87635653

HOSE,675.00mm

RH, Start Serial: D5753

1шт.

Bolt and Washer shown in ghost - is 4864083 Banjo Bolt and 44906168 seal

1шт.

5

87644884

HOSE,675.00mm

LH, Start Serial: D5753

1шт.

6

87352542

HOSE,550.00mm

2шт.

Выбрано товаров: 10
