Запчасти Case IH MAXXUM 140 (1.40. 9/06[01]) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - BEVEL GEAR PAIR - C6758 (VAR.330430) (04) - FRONT AXLE & STEERING

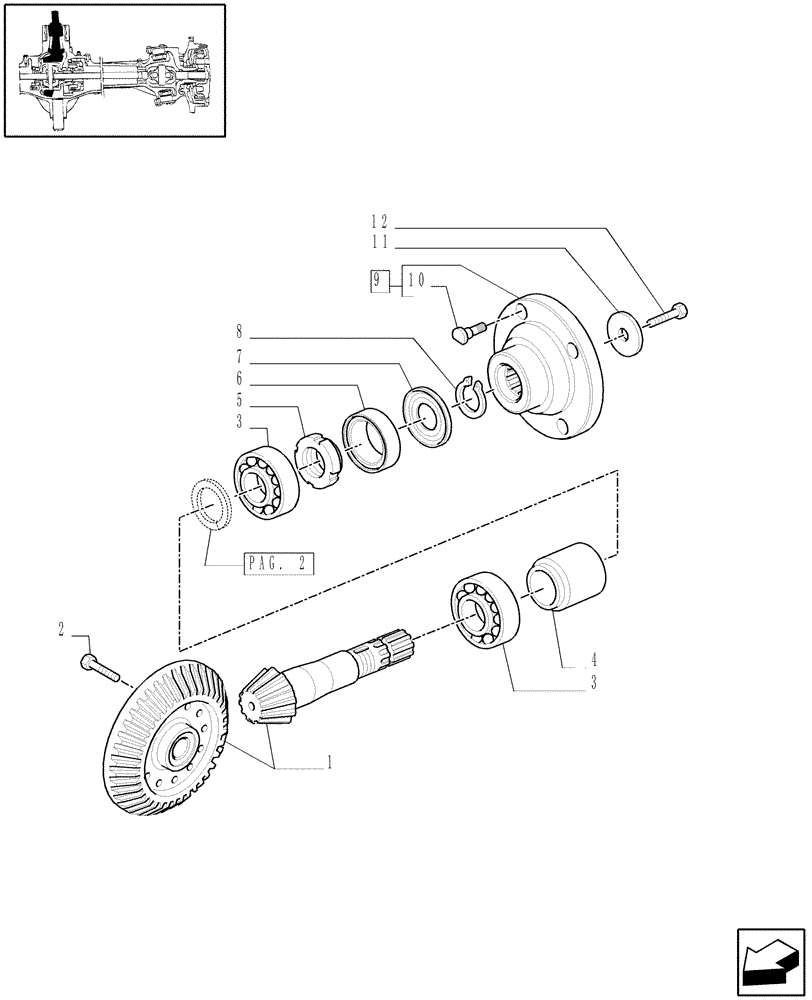

Схема запчастей Case IH MAXXUM 140 - (1.40. 9/06[01]) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - BEVEL GEAR PAIR - C6758 (VAR.330430) (04) - FRONT AXLE & STEERING
12
pag. 2
6
10
7
3
1
4
3
8
9
11
5
2

Артикул

Название

Примечание

Количество

1

87337411

BEVEL GEAR

Ratio 11/28

1шт.

2

15540631

BOLT,Hex, M12 x 1.25 x 40mm, Cl 10.9, Full Thd

12шт.

3

87387938

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

41.275x82.550x26.543

2шт.

4

87354461

SPACER

1шт.

5

5119147

RING NUT,M40 x 1.5

1шт.

6

87349657

SEAL,37mm ID x 85mm OD x 15.5mm Thk

1шт.

7

87528144

SEAL PROTECTION

1шт.

8

11068476

SNAP RING,M36, Ext

1шт.

9

87350786

FLANGE

1шт.

10

87550808

PIN,12.5mm OD x 37mm L

4шт.

11

87350787

WASHER

1шт.

12

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 12
