(1.40. 9/01) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - BOX (VAR.330430)

Запчасти Case IH MAXXUM 140 (1.40. 9/01) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - BOX (VAR.330430) (04) - FRONT AXLE & STEERING

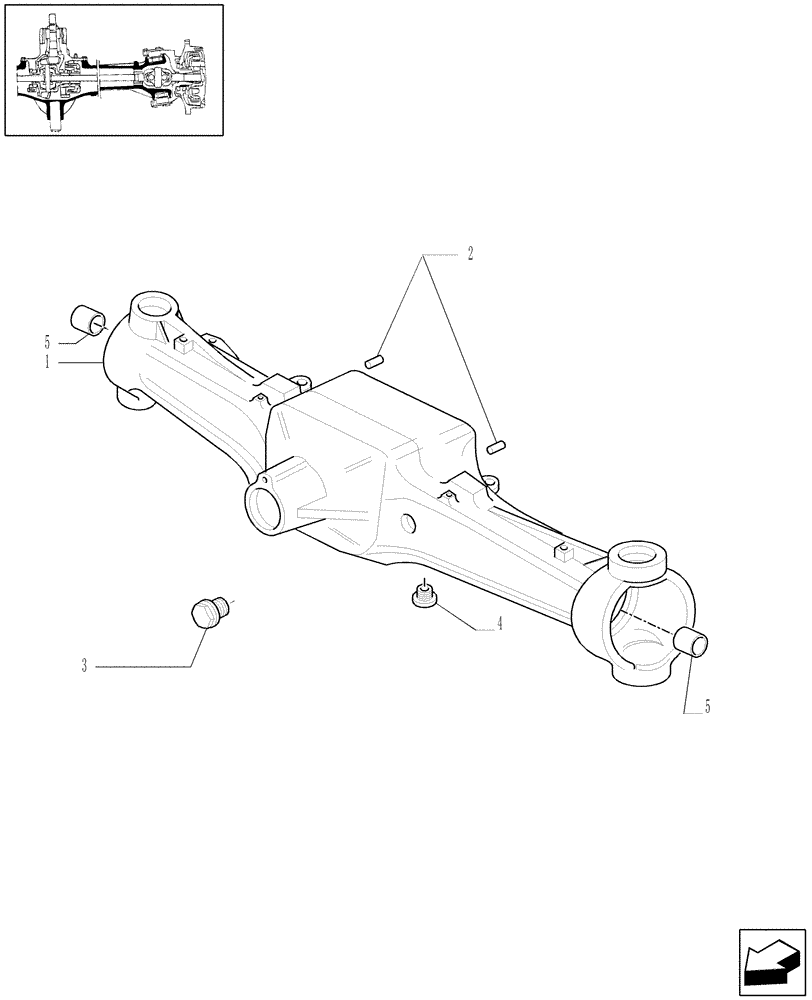

Схема запчастей Case IH MAXXUM 140 - (1.40. 9/01) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - BOX (VAR.330430) (04) - FRONT AXLE & STEERING
5
2
5
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87578776

AXLE HOUSING

Incl. 2, 5

1шт.

2

5174376

DOWEL,M16 x 30

2шт.

3

14324413

PLUG,M22 x 1.5

1шт.

4

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

5

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

2шт.
