Запчасти Case IH MAXXUM 140 (1.40. 8/12[01]) - (CL.4) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND ST. SENSOR - CYLINDERS (VAR.330429) (04) - FRONT AXLE & STEERING

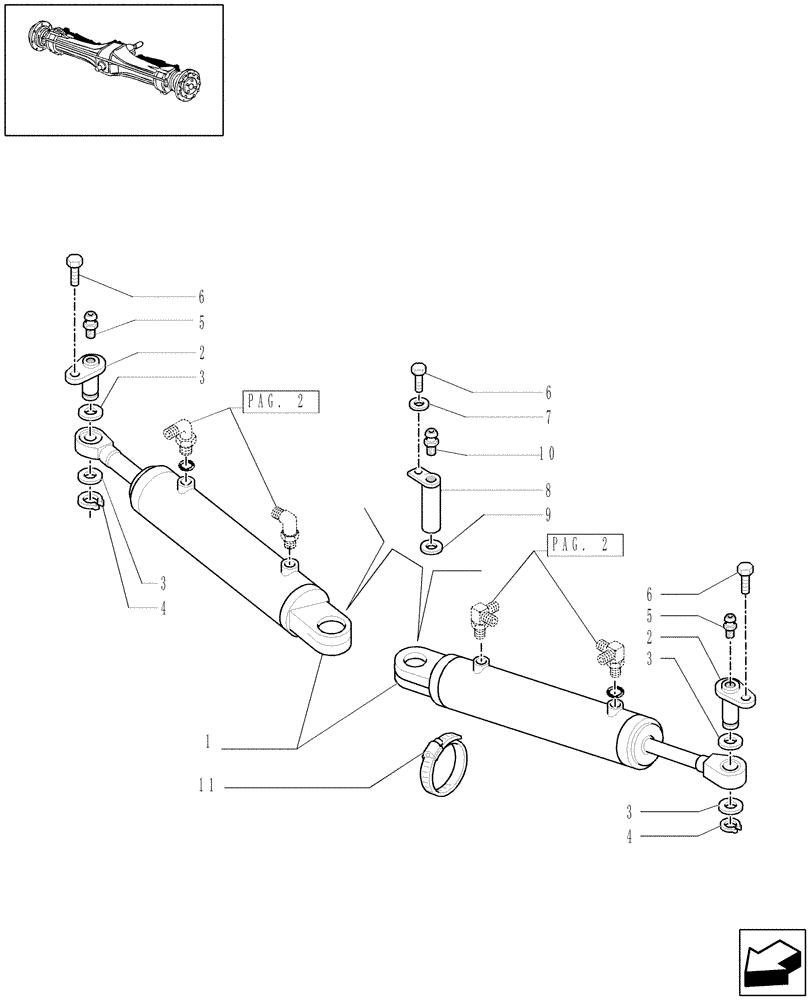

Схема запчастей Case IH MAXXUM 140 - (1.40. 8/12[01]) - (CL.4) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND ST. SENSOR - CYLINDERS (VAR.330429) (04) - FRONT AXLE & STEERING
5
11
2
7
4
1
4
3
3
5
pag. 2
pag. 2
3
10
3
6
2
8
6
6
9

Артикул

Название

Примечание

Количество

1

87546274

SERVO STEERING CYL

2шт.

5199826

SEAL KIT

Seals kit

1шт.

2

5171707

PIN,24.97mm OD x 91mm L

2шт.

3

5111573

SPACER,25.5mm ID x 34mm OD x 5.9mm L

4шт.

4

11067376

SNAP RING,M25, Ext

2шт.

5

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

6

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

8

5198013

PIN,24.97mm OD x 100mm L

2шт.

9

5111576

SPACER,25.5mm ID x 34mm OD x 11mm L

2шт.

10

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

11

13000990

COLLAR,60mm - 80mm, Worm Gear

1шт.

Выбрано товаров: 12
