(1.40. 8/05) - (CL.4) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND ST. SENSOR - SUPPORT (VAR.330429)

Запчасти Case IH MAXXUM 140 (1.40. 8/05) - (CL.4) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND ST. SENSOR - SUPPORT (VAR.330429) (04) - FRONT AXLE & STEERING

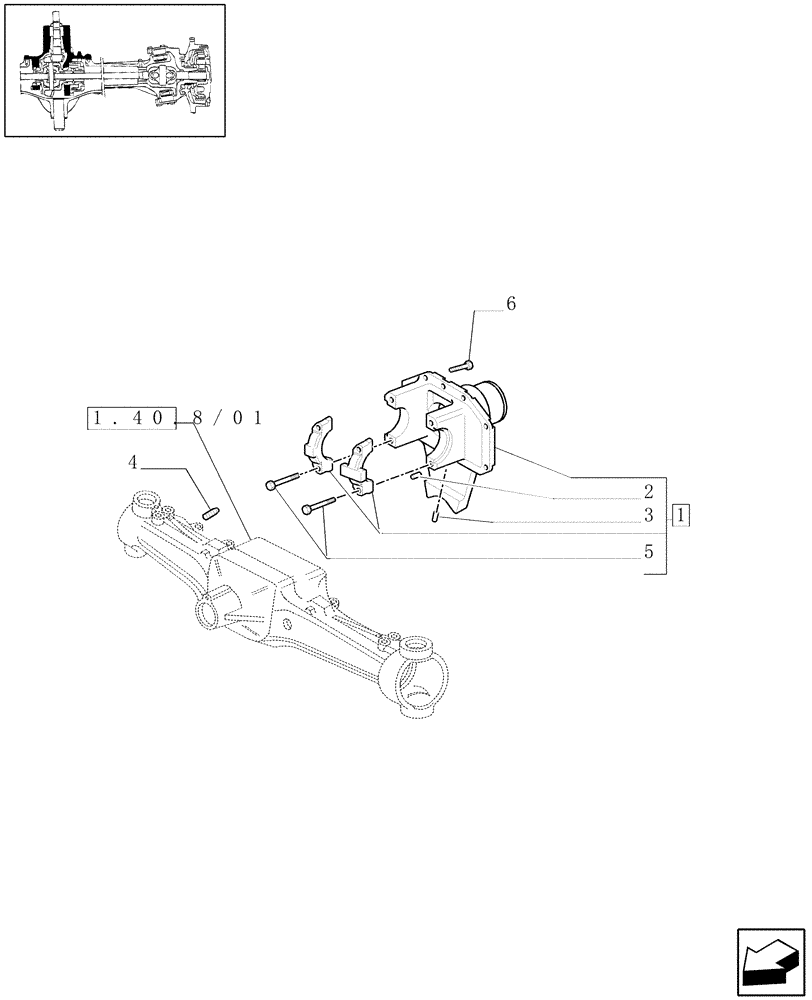

Схема запчастей Case IH MAXXUM 140 - (1.40. 8/05) - (CL.4) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND ST. SENSOR - SUPPORT (VAR.330429) (04) - FRONT AXLE & STEERING
4
2
3
6
5
1.40.8/01
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87491166

SUPPORT

ASSY

1шт.

2

10333210

DOWEL,M4 x 10.00mm

4x10

1шт.

3

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

1шт.

4

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

1шт.

5

14275331

LOCK BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

4шт.

6

14313731

SCREW,M6 x 1.5 x 40mm

4шт.
