Запчасти Case IH MAXXUM 140 (1.40. 7/06[01A]) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - BEVEL GEAR PAIR - D6758 (VAR.330426) (04) - FRONT AXLE & STEERING

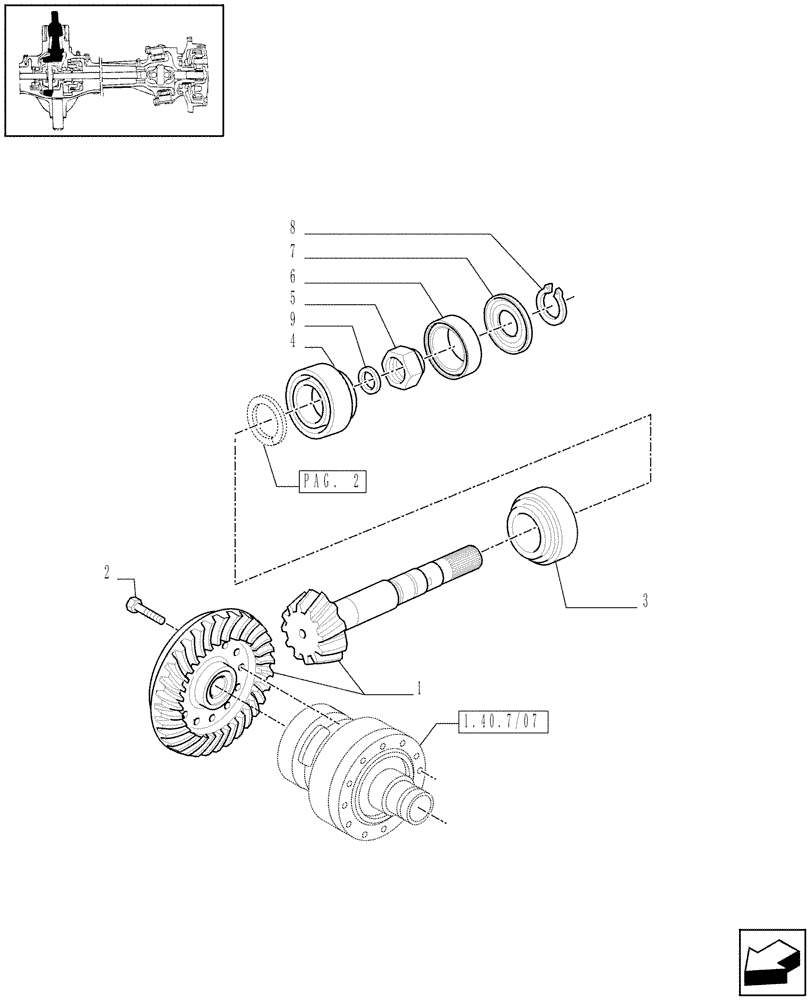

Схема запчастей Case IH MAXXUM 140 - (1.40. 7/06[01A]) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - BEVEL GEAR PAIR - D6758 (VAR.330426) (04) - FRONT AXLE & STEERING
5
1.40.7/07
pag. 2
6
9
2
1
7
8
4
3

Артикул

Название

Примечание

Количество

1

84287310

BEVEL GEAR,11T/ 28T

Ratio 11/28

1шт.

2

84394067

BOLT

12шт.

3

87387938

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

41.275 x 82.550 x 26.543

1шт.

4

5133776

TAPERED BEARING,35.00mm x 72.00mm x 28.00mm

35 x 72 x 28

1шт.

5

84289068

CROWN NUT,M35 x 1.5

M35 x 19.5

1шт.

6

87349652

SEAL,32.5mm ID x 75mm OD x 15mm Thk

32.5 x 75 x 14.5

1шт.

7

87527839

SEAL PROTECTION

1шт.

8

11067876

SNAP RING,M30, Ext

1шт.

9

84285936

SPECIAL WASHER

1шт.

Выбрано товаров: 9
