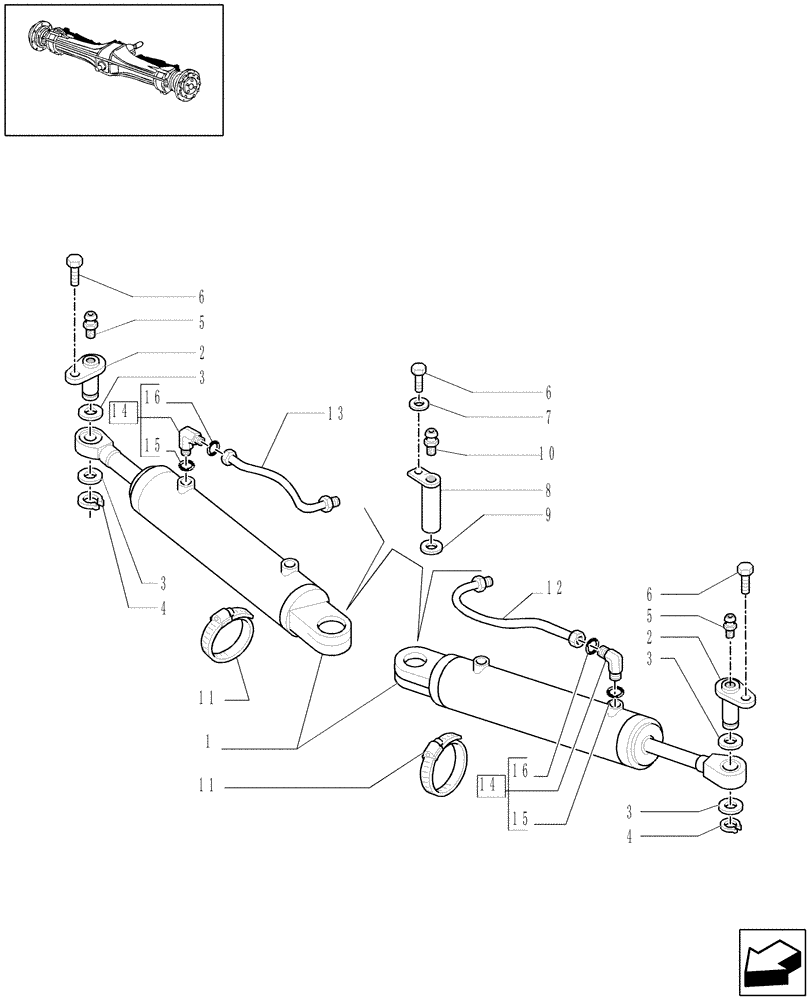

Запчасти Case IH MAXXUM 140 (1.40. 6/12) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF.LOCK AND STEERING SENS - CYLINDERS (VAR.330408) (04) - FRONT AXLE & STEERING

1

87546274

SERVO STEERING CYL

2шт.

5199826

SEAL KIT

Seals kit

1шт.

2

5171707

PIN,24.97mm OD x 91mm L

2шт.

3

5111573

SPACER,25.5mm ID x 34mm OD x 5.9mm L

4шт.

4

11067376

SNAP RING,M25, Ext

2шт.

5

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

6

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

6

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

M8 x 16, 8.8 Full

2шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

8

5198013

PIN,24.97mm OD x 100mm L

2шт.

9

5111576

SPACER,25.5mm ID x 34mm OD x 11mm L

2шт.

10

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

11

13000990

COLLAR,60mm - 80mm, Worm Gear

2шт.

12

47136881

HYD TUBE

LH, Serial Range: -C5867

1шт.

12

87648141

HYD TUBE

LH, Serial Range: D5867-C6461

1шт.

12

84233089

HYD TUBE,10.00mm OD x 276.00mm, 75.00mm L

LH, Start Serial: D6461

1шт.

13

47136883

HYD TUBE

RH, Serial Range: -C5867

1шт.

13

87648149

HYD TUBE,255, 77 mm L

RH, Serial Range: D5867-C6461

1шт.

13

84233156

HYD TUBE,10.00mm OD x 276.00mm, 75.00mm L

RH, Start Serial: D6461

1шт.

14

47127165

90 ELBOW

2шт.

15

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

16

14437785

O-RING,11.3mm ID x 2.4mm

2шт.
