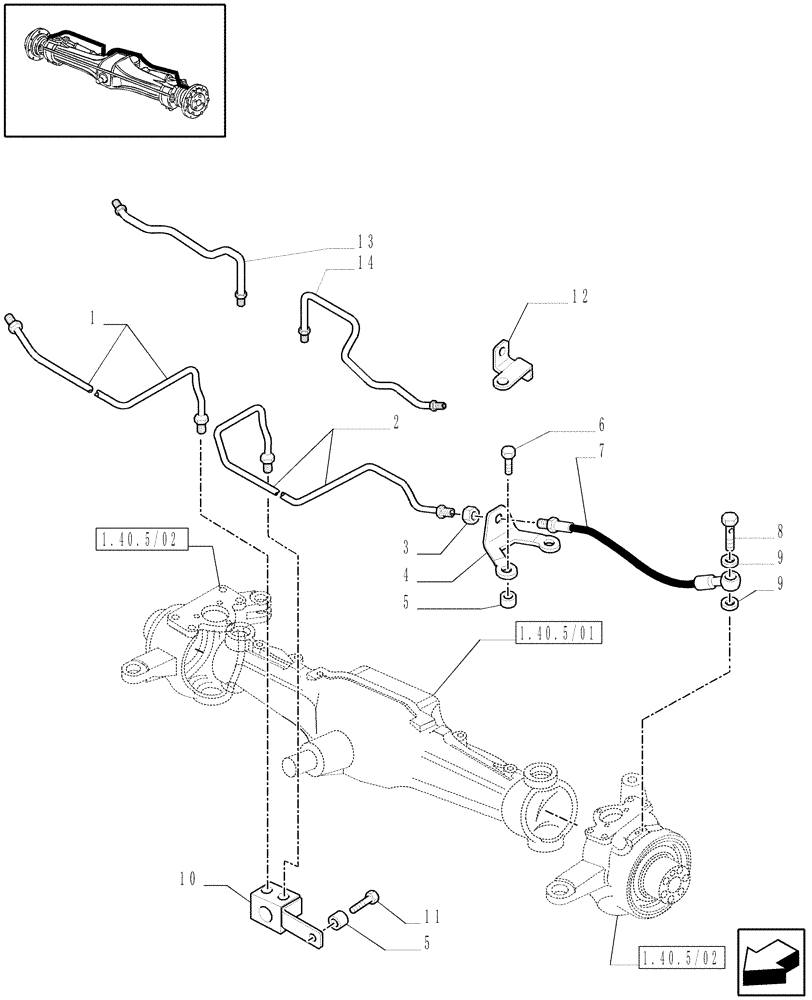

Запчасти Case IH MAXXUM 140 (1.40. 5/14[02]) - (CL.3) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND BRAKES - BRAKES PIPES (VAR.330427) (04) - FRONT AXLE & STEERING

1

87536254

BRAKE LINE

RH, Serial Range: -C5742

1шт.

2

87536252

BRAKE LINE

, Serial Range: -C5742

1шт.

3

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

2шт.

4

87535932

BRACKET

LH, Serial Range: -C5742

1шт.

4

87535933

BRACKET

RH, Serial Range: -C5742

1шт.

5

5184935

SPACER,13mm ID x 25mm OD x 20mm L

, Serial Range: -C5742

3шт.

5

47127963

SPACER

, Start Serial: D5742

3шт.

6

15540724

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8

, Serial Range: -C5742

3шт.

6

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

, Start Serial: D5742

3шт.

7

5155700

HOSE,4.75mm ID x 315.00mm

295MM

2шт.

8

5155703

BANJO BOLT,M12 x 1.25 x 22mm

M12 x 1.25 x 22

2шт.

9

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

12MM

4шт.

10

87351041

BRACKET

1шт.

11

15981334

BOLT,Hex, M16 x 1.5 x 75mm, Cl 10.9

1шт.

12

87571108

BRACKET

LH, Start Serial: D5742

1шт.

13

87571774

BRAKE LINE

RH, Start Serial: D5742

1шт.

14

87571766

BRAKE LINE

LH, Start Serial: D5742

1шт.
