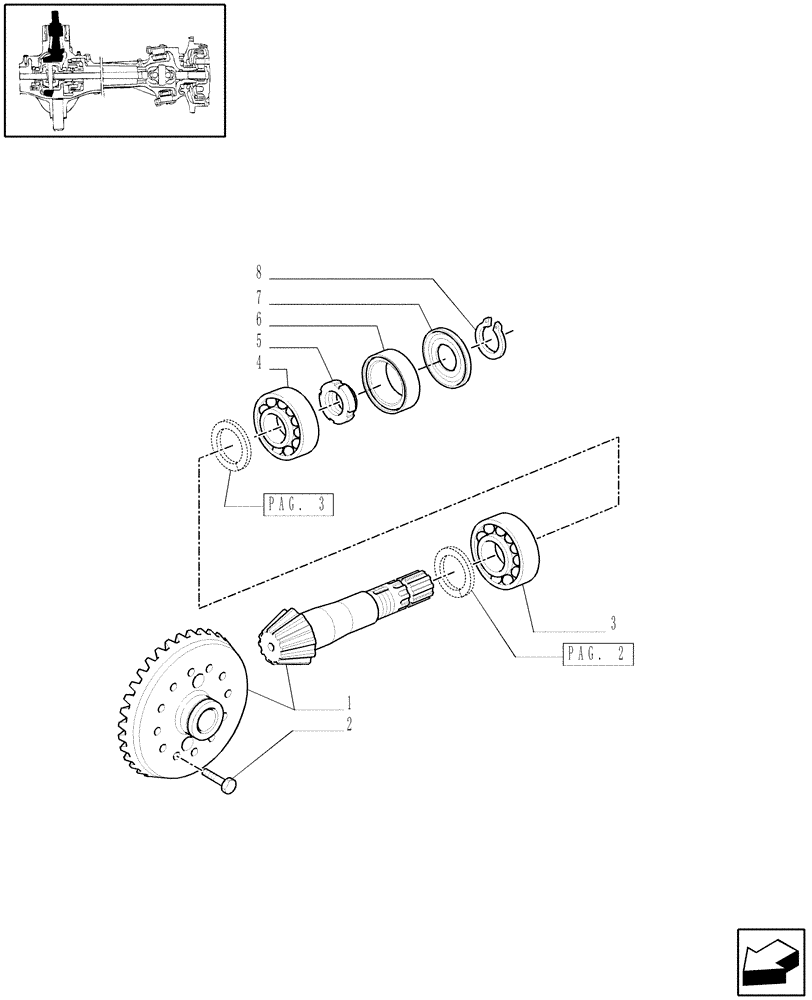

Запчасти Case IH MAXXUM 140 (1.40. 2/06[01]) - 4WD (CL.3) FRONT AXLE WITH WET CLUTCH, "TERRALOCK" - BEVEL GEAR PAIR (04) - FRONT AXLE & STEERING

1

87519338

BEVEL GEAR

Ratio 10/34

1шт.

2

15540431

SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

3

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

41.275x82.550x26.543

1шт.

4

5133776

TAPERED BEARING,35.00mm x 72.00mm x 28.00mm

35x72x28

1шт.

5

5143242

RING NUT,M35 x 1.5

M35x19.5

1шт.

6

87349652

SEAL,32.5mm ID x 75mm OD x 15mm Thk

32.5x75x14.5

1шт.

7

87527839

SEAL PROTECTION

1шт.

8

11067876

SNAP RING,M30, Ext

1шт.
