Запчасти Case IH MAXXUM 140 (1.32.8/04[03]) - 113 L/MIN CCLS PUMP FOR (CL.4) FRONT AXLE - PUMPS FOR HYDRAULIC SYSTEM AND LIFT - C6562 (VAR.334835-336835-337835-338835-339835 / 743744) (03) - TRANSMISSION

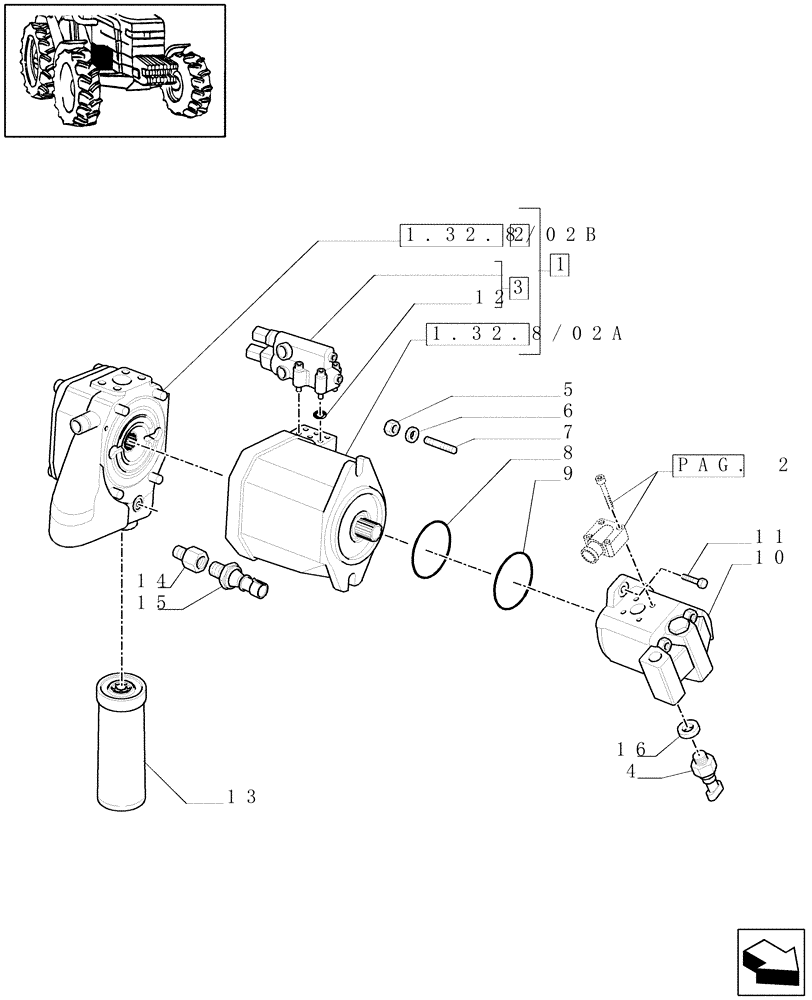

Схема запчастей Case IH MAXXUM 140 - (1.32.8/04[03]) - 113 L/MIN CCLS PUMP FOR (CL.4) FRONT AXLE - PUMPS FOR HYDRAULIC SYSTEM AND LIFT - C6562 (VAR.334835-336835-337835-338835-339835 / 743744) (03) - TRANSMISSION
5
3
7
11
1.32.8/02b
6
16
12
2
1.32.8/02a
9
13
10
pag. 2
8
14
1
15
4

Артикул

Название

Примечание

Количество

1

5198694

HYDRAULIC PUMP,45 CC

ASSY, 45CC, 113 l/min, Variable Folw, for CCLS

1шт.

1

5198694R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

1

5198694C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

2

47127269

PUMP

1шт.

3

47127261

REGULATOR

Incl.12

1шт.

4

87494632

PRESSURE SWITCH,M12 x 1.5

Safety Switch

1шт.

5

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

2шт.

6

10730821

WASHER,Flat, 14.40mm ID x 26.00mm OD x 3.00mm, R80, ZND

2шт.

7

13555534

STUD

M14X28X35

2шт.

8

14461380

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

9

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

10

87747937

HYDRAULIC PUMP

for Steering and Low Pressure Oil Systems, Serial Range: -C6525

1шт.

10

84241076

HYDRAULIC PUMP

for Steering and Low Pressure Oil Systems, Start Serial: D6525

1шт.

10

84241076R

REMAN-HYD PUMP

MAXXUM 115, MAXXUM 125, MAXXUM 140, All TRACTOR, for Steering and Low Pressure Oil Systems, Start Serial: D6525, (VAR.334835-336835-337835-338835-339835) (1/07-)

1шт.

10

84241076C

CORE-HYDRAULIC PUMP

Return Number

1шт.

11

14307421

HEX SOC SCREW,M10 x 1.25 x 25mm, Cl 8.8

2шт.

12

47127305

O-RING

3шт.

13

84226263

HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF

1шт.

14

81866305

ADAPTER,1/4" NPT x M10 x 1 ORB

M10

1шт.

15

87564684

SWITCH ASSY

Oil Pressure

1шт.

16

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

Выбрано товаров: 21
