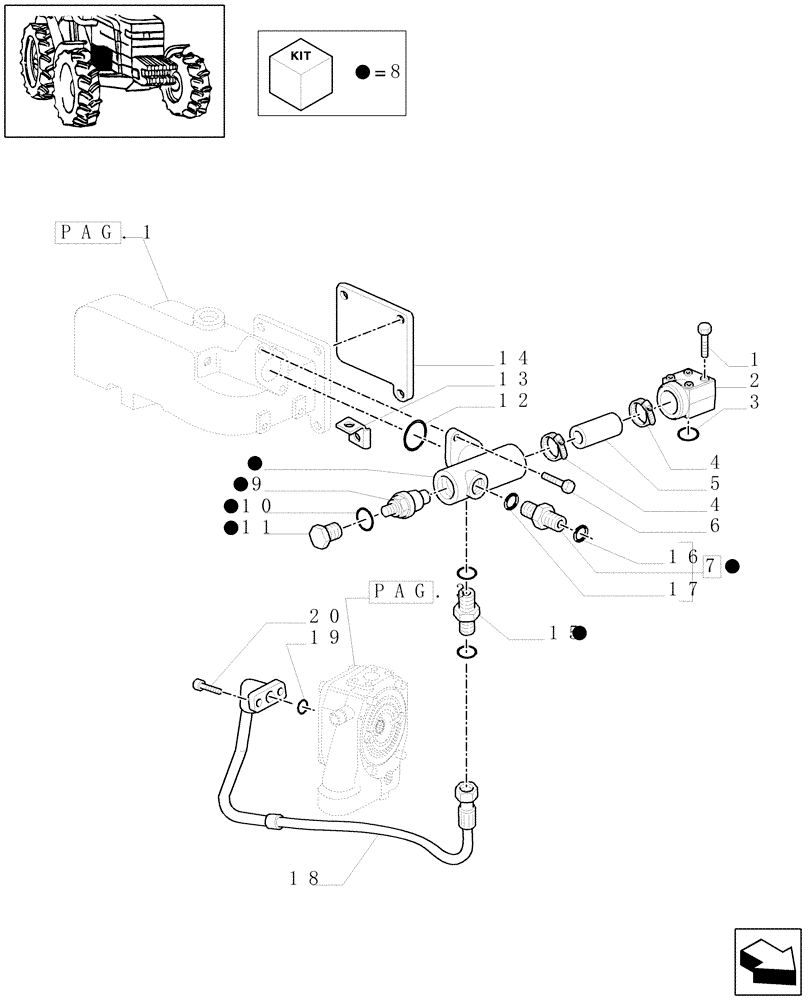

Запчасти Case IH MAXXUM 140 (1.32.8/04[02]) - 113 L/MIN CCLS PUMP FOR (CL.4) FRONT AXLE - PUMPS FOR HYDRAULIC SYSTEM AND LIFT - C6562 (VAR.334835-336835-337835-338835-339835 / 743744) (03) - TRANSMISSION

1

14306824

HEX SOC SCREW,M8 x 1.25 x 45mm, Cl 8.8, Full Thd

4шт.

2

87641126

FLANGE

1шт.

3

14463680

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

4

82039346

HOSE CLAMP,30mm - 45mm, Worm Gear

2шт.

5

87641125

MANIFOLD

1шт.

6

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

87316273

CHECK VALVE

1шт.

7

87555082

HYDRAULIC VALVE

1шт.

8

87634971

MANIFOLD

1шт.

9

47123798

BY-PASS VALVE

1шт.

10

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

11

47134136

1шт.

12

14463681

O-RING,31.34mm ID x 3.53" Width

1шт.

13

82023638

BRACKET

1шт.

14

5197555

SHIM,2mm Thk

1шт.

15

87617952

1-3/16"-12UN - 2A, M27 x 1.5

1шт.

16

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

12.42 x 1.78

1шт.

17

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

18

47135930

FLEXIBLE HOSE

1шт.

19

14462981

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 75 Duro

1шт.

20

14306420

HEX SOC SCREW,M8 x 25mm, Cl 8.8

2шт.
