Запчасти Case IH MAXXUM 140 (1.32.8/03[03]) - 113 L/MIN CCLS PUMP FOR (CL.3) FRONT AXLE - PUMPS FOR HYDRAULIC SYSTEM AND LIFT - C6562 (VAR.330835-331836-332836-333836-335836 / 743744) (03) - TRANSMISSION

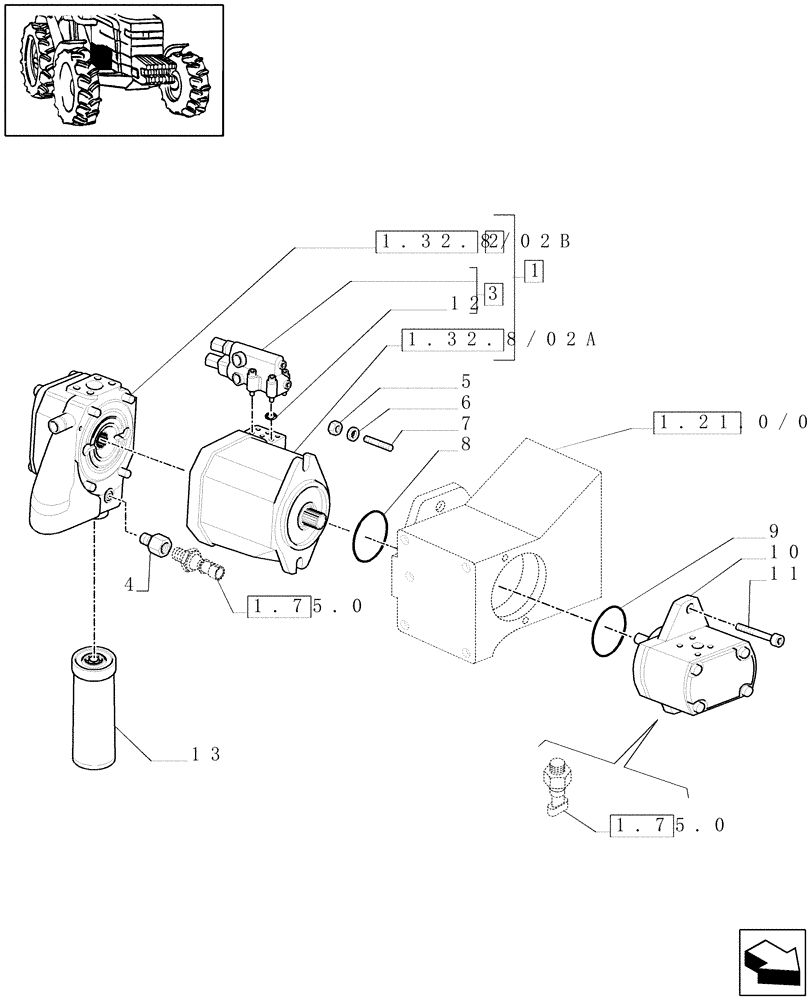

Схема запчастей Case IH MAXXUM 140 - (1.32.8/03[03]) - 113 L/MIN CCLS PUMP FOR (CL.3) FRONT AXLE - PUMPS FOR HYDRAULIC SYSTEM AND LIFT - C6562 (VAR.330835-331836-332836-333836-335836 / 743744) (03) - TRANSMISSION
1
3
8
1.32.8/02b
1.32.8/02a
1.75.0
1.75.0
1.21.0/01
10
11
9
2
6
7
4
5
12
13

Артикул

Название

Примечание

Количество

1

5198694

HYDRAULIC PUMP,45 CC

ASSY, 45cc

1шт.

1

5198694R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

1

5198694C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

2

47127269

PUMP

1шт.

3

47127261

REGULATOR

Incl. 12

1шт.

4

81866305

ADAPTER,1/4" NPT x M10 x 1 ORB

1шт.

5

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

2шт.

6

10730821

WASHER,Flat, 14.40mm ID x 26.00mm OD x 3.00mm, R80, ZND

2шт.

7

13555534

STUD

M14 x 28 x 35

2шт.

8

14461380

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

9

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

10

5192657

HYDRAULIC PUMP

16cc, Serial Range: -C5966

1шт.

for Steering and Low Pressure Oil System

1шт.

10

87603409

HYDRAULIC PUMP,16.76 CC

16cc, Start Serial: D5966

1шт.

for Steering and Low Pressure Oil System

1шт.

11

14307421

HEX SOC SCREW,M10 x 1.25 x 25mm, Cl 8.8

2шт.

12

47127305

O-RING

3шт.

13

84226263

HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF

Charge Pump

1шт.

Выбрано товаров: 18
