Запчасти Case IH MAXXUM 140 (1.32.8/03[02]) - 113 L/MIN CCLS PUMP FOR (CL.3) FRONT AXLE - PUMPS FOR HYDRAULIC SYSTEM AND LIFT - C6562 (VAR.330835-331836-332836-333836-335836 / 743744) (03) - TRANSMISSION

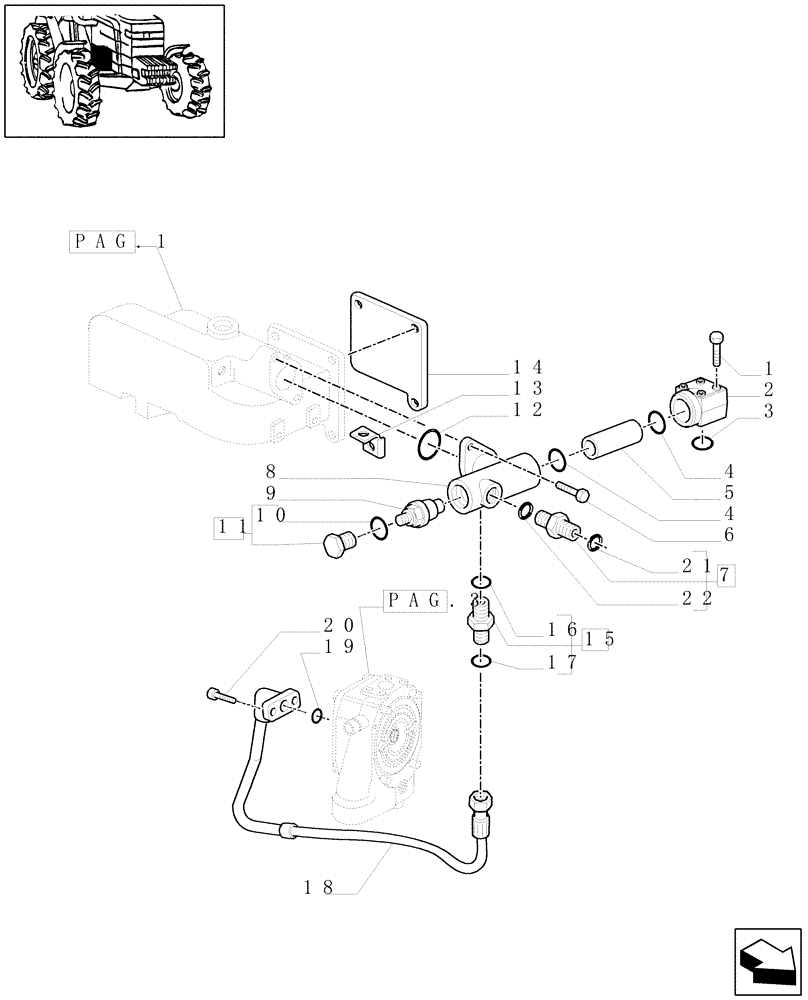

Схема запчастей Case IH MAXXUM 140 - (1.32.8/03[02]) - 113 L/MIN CCLS PUMP FOR (CL.3) FRONT AXLE - PUMPS FOR HYDRAULIC SYSTEM AND LIFT - C6562 (VAR.330835-331836-332836-333836-335836 / 743744) (03) - TRANSMISSION
20
8
7
12
10
19
4
5
21
18
17
16
15
4
6
11
3
13
pag.3
14
22
2
9
pag.1
1

Артикул

Название

Примечание

Количество

1

10903624

BOLT,Hex, M6 x 50mm, Cl 8.8

4шт.

2

5192922

FLANGE

, Serial Range: -C5966

1шт.

2

87602545

COUPLING FLANGE

, Start Serial: D5966

1шт.

3

5135740

O-RING,0.924" ID x 1.13" OD x 0.103"

1шт.

4

14458180

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

2шт.

5

5192921

TUBE

1шт.

6

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

87316273

CHECK VALVE

1шт.

7

87555082

HYDRAULIC VALVE

1шт.

8

47135935

MANIFOLD

1шт.

9

47123798

BY-PASS VALVE

1шт.

10

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

11

5196648

PLUG

1шт.

12

14463681

O-RING,31.34mm ID x 3.53" Width

1шт.

13

82023638

BRACKET

1шт.

14

5197555

SHIM,2mm Thk

1шт.

15

47135934

HYD CONNECTOR

1-3/16"-12UN - 2A, M27x1.5

1шт.

16

14438185

O-RING,24mm ID x 3mm

1шт.

17

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

18

47135930

FLEXIBLE HOSE

1шт.

19

14462981

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 75 Duro

1шт.

20

14306420

HEX SOC SCREW,M8 x 25mm, Cl 8.8

2шт.

21

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

22

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

Выбрано товаров: 24
