(1.32.8/02[03A]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT (113 L/MIN) - BRAKE LUBRICATION PIPES - D6562 (VAR.390835-391835 / 743744)

Запчасти Case IH MAXXUM 140 (1.32.8/02[03A]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT (113 L/MIN) - BRAKE LUBRICATION PIPES - D6562 (VAR.390835-391835 / 743744) (03) - TRANSMISSION

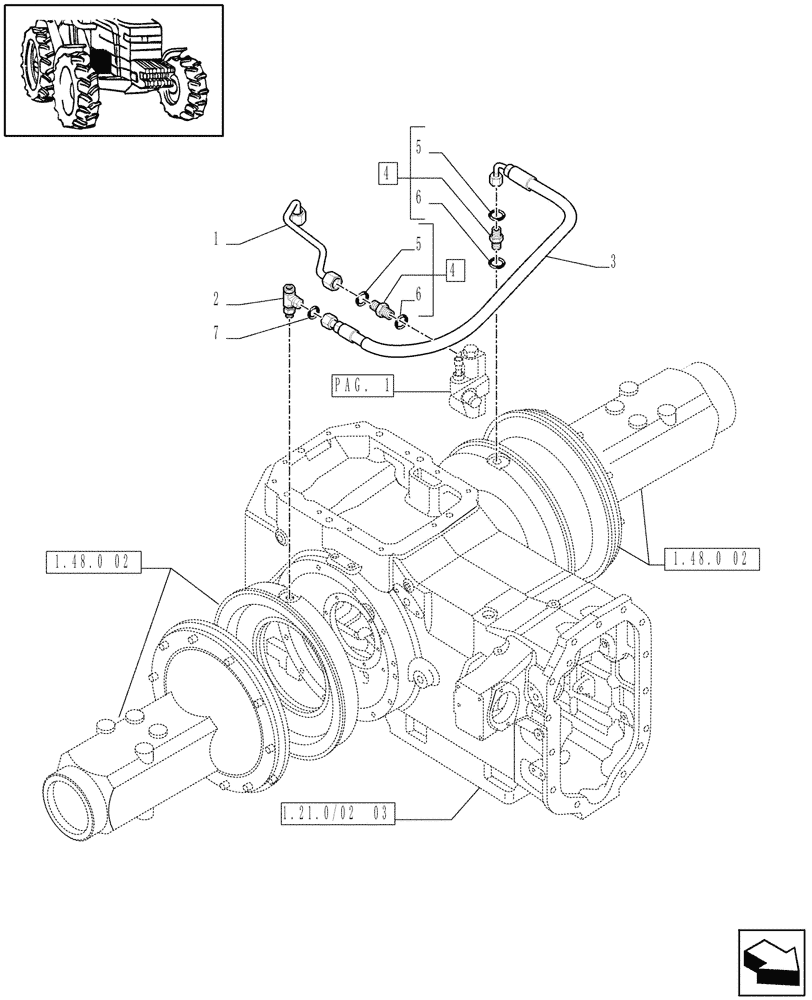

Схема запчастей Case IH MAXXUM 140 - (1.32.8/02[03A]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT (113 L/MIN) - BRAKE LUBRICATION PIPES - D6562 (VAR.390835-391835 / 743744) (03) - TRANSMISSION
1.21.0/02 03
pag. 1
7
6
5
4
4
3
1
2
6
5
1.48.0 02
1.48.0 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87634968

TUBE

1шт.

2

87722406

HYD CONNECTOR

1шт.

3

87624622

HOSE

1шт.

4

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

2шт.

5

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

7

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

1шт.
