Запчасти Case IH MAXXUM 140 (1.32.6/05) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND STEERING SENSOR - PIPES (03) - TRANSMISSION

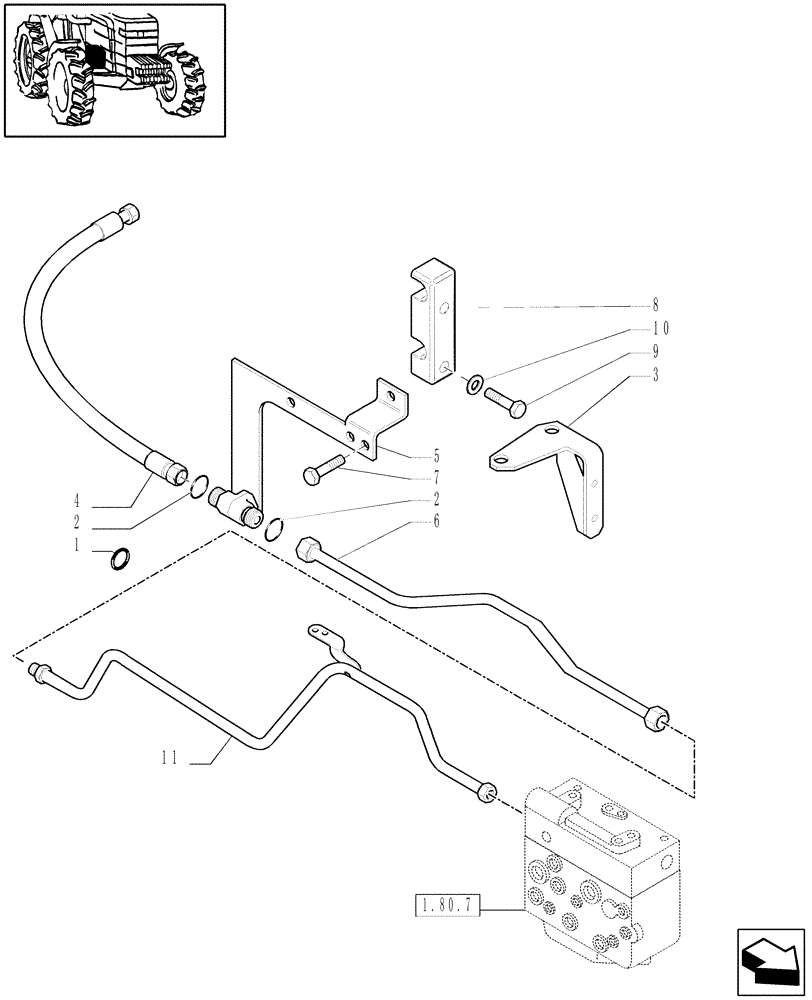

Схема запчастей Case IH MAXXUM 140 - (1.32.6/05) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND STEERING SENSOR - PIPES (03) - TRANSMISSION
7
4
5
1
11
1.80.7
6
8
9
3
2
10
2

Артикул

Название

Примечание

Количество

1

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

2

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

3

82037221

BRACKET

1шт.

4

87352542

HOSE,550.00mm

Diff. Lock

1шт.

5

87317792

SUPPORT

1шт.

6

87540060

HYD TUBE,8 mm ID x 10 mm OD x 604, 46 mm L

Front Diff. Lock

1шт.

7

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.

8

82029228

CLAMP,2 Hoses

1шт.

9

16050621

SCREW,Hex, M6 x 30mm, Cl 8.8, Full Thd

2шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

11

87561351

RIGID TUBE,10 mm OD

Front Diff. Lock

1шт.

Выбрано товаров: 11
