Запчасти Case IH MAXXUM 140 (1.32.6/04) - (CL.3) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK - PIPES (VAR.330414-330427) (03) - TRANSMISSION

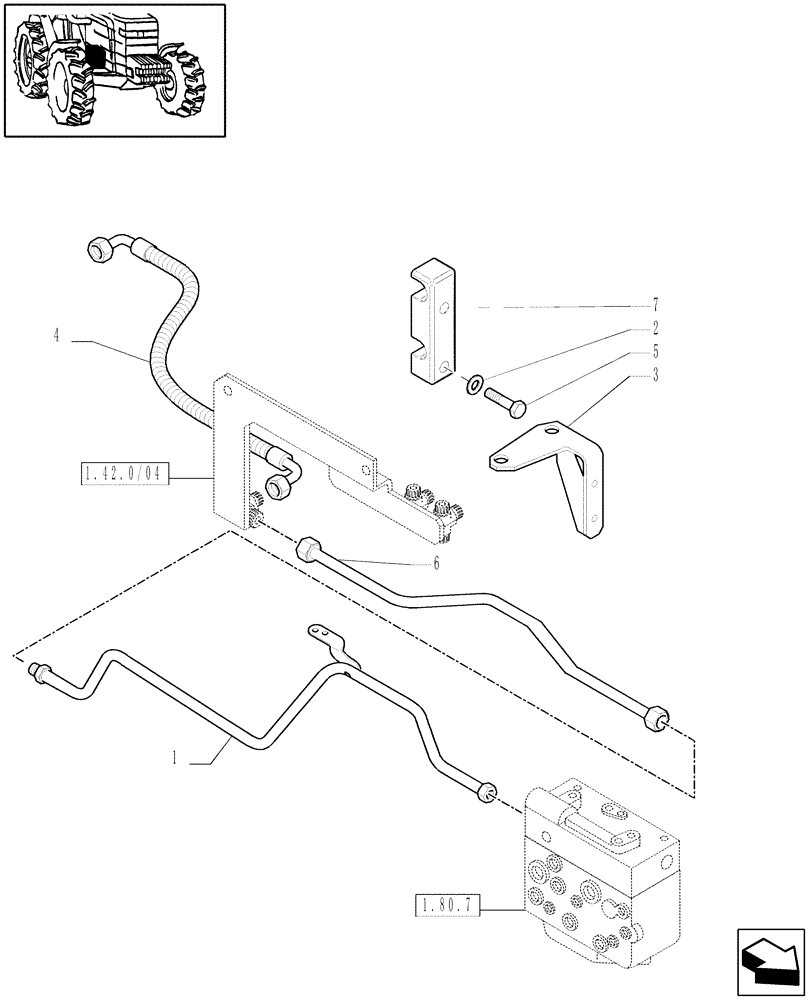

Схема запчастей Case IH MAXXUM 140 - (1.32.6/04) - (CL.3) SUSPENDED FRONT AXLE W/MULTI-PLATE DIFF. LOCK - PIPES (VAR.330414-330427) (03) - TRANSMISSION
7
4
5
1
1.80.7
1.42.0/04
3
6
2

Артикул

Название

Примечание

Количество

1

87561351

RIGID TUBE,10 mm OD

Front Diff. Lock

1шт.

2

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

3

82037221

BRACKET

1шт.

4

82036783

FLEXIBLE HOSE,9.53mm ID x 580mm L, SAE 100R2

Diff. Lock

1шт.

5

16050621

SCREW,Hex, M6 x 30mm, Cl 8.8, Full Thd

2шт.

6

87543758

TUBE,8 mm ID x 10 mm OD x 410, 315 mm L

Front Diff. Lock

1шт.

MAX100, MAX110, MAX120, MAX130

1шт.

6

87543759

TUBE,8 mm ID x 10 mm OD x 650, 555 mm L

Front Diff. Lock

1шт.

MAX115, MAX125, MAX140

1шт.

7

82029228

CLAMP,2 Hoses

1шт.

Выбрано товаров: 10
