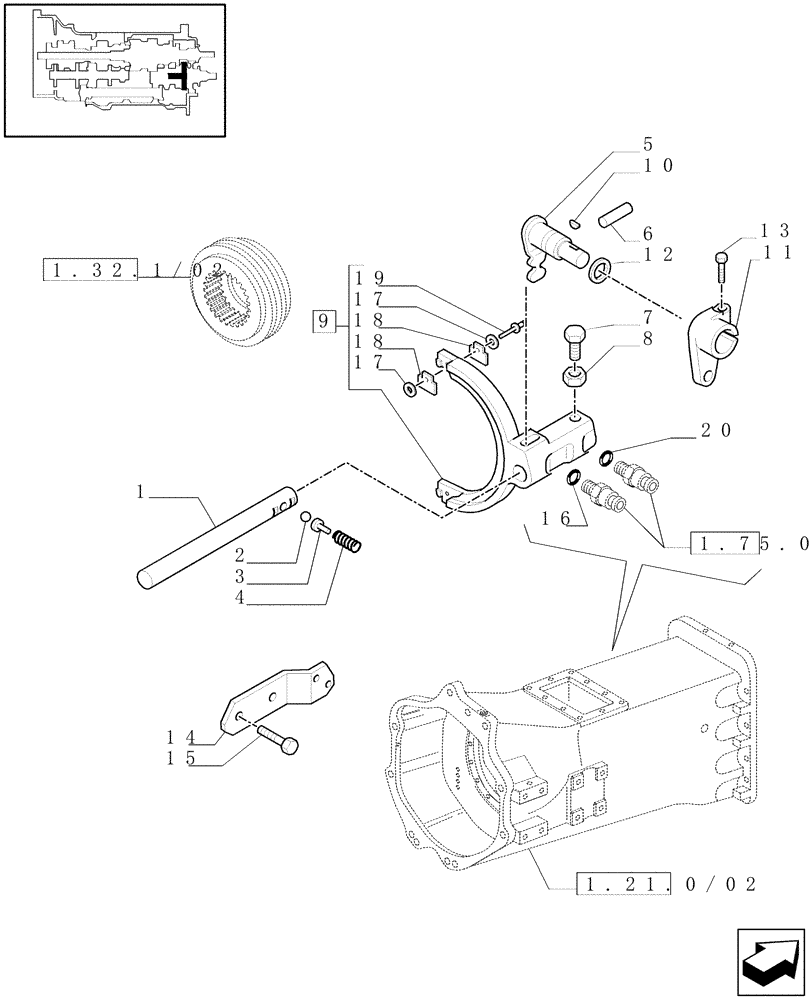

Запчасти Case IH MAXXUM 140 (1.32.2/02) - TRANSMISSION 16X16 AND 17X16 - RANGE GEARSHIFT MECHANISM - ROD, FORK AND LEVER (STD + VAR.330283) (03) - TRANSMISSION

1

81864180

GUIDE

1шт.

2

88210005

BALL,10mm OD

D=10

1шт.

3

81863300

PLUG

1шт.

4

83407013

SPRING

1шт.

5

47126893

SHAFT

1шт.

6

81864306

PIN

1шт.

7

81864307

SCREW,Hex, M10 x 1.25 x 29.05mm

1шт.

8

83980600

THIN NUT,M10 x 1.25, Cl 8

1шт.

9

87603966

FORK

ASSY, High/Low Range

1шт.

10

81874436

WOODRUFF KEY,5mm x 7.5mm x 18.57mm

1шт.

11

47126919

LEVER

1шт.

12

81863142

SEAL

1шт.

13

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

14

47124371

BRACKET

1шт.

15

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

16

81832258

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

81863433

WASHER

4шт.

18

81865155

BLOCK

4шт.

19

82866049

RIVET,Pop, 3.3mm OD x 22.6mm L

2шт.

20

81845037

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
