Запчасти Case IH MAXXUM 140 (1.29.9/02[02]) - TRANSMISSION 16X16 AND 17X16 - COVER FOR REVERSER - CONTROL FOR 4/5 UNITS AND SENSOR (STD + VAR.330283) (03) - TRANSMISSION

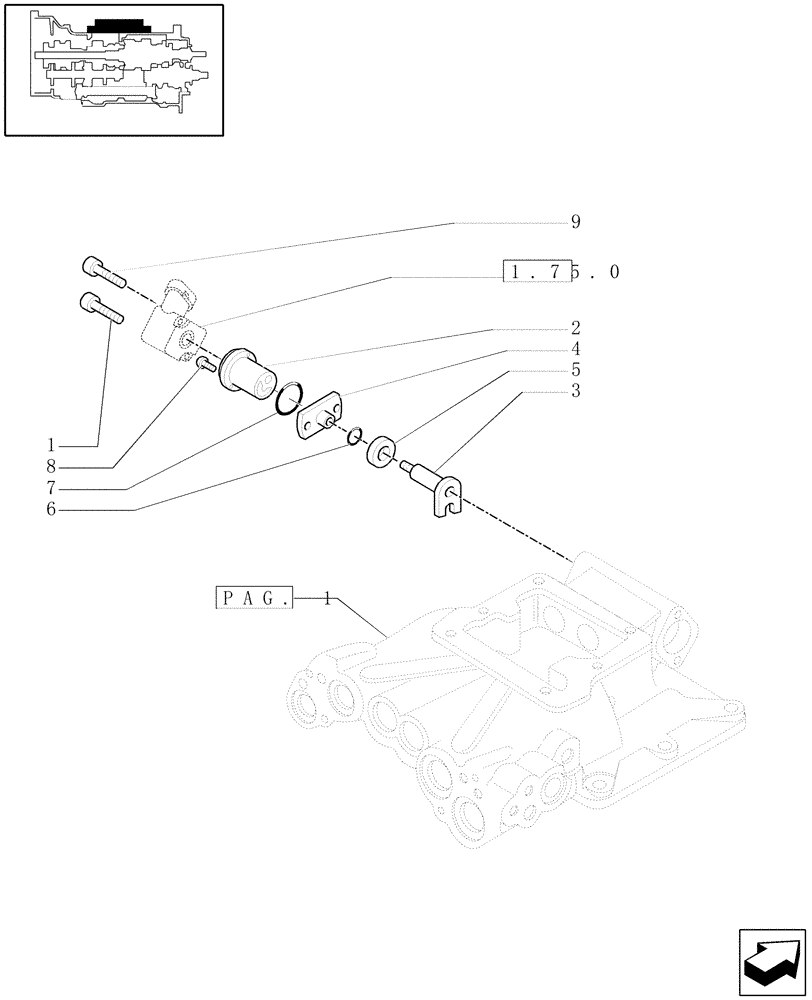

Схема запчастей Case IH MAXXUM 140 - (1.29.9/02[02]) - TRANSMISSION 16X16 AND 17X16 - COVER FOR REVERSER - CONTROL FOR 4/5 UNITS AND SENSOR (STD + VAR.330283) (03) - TRANSMISSION
8
7
4
3
9
6
2
1.75.0
5
1
pag. 1

Артикул

Название

Примечание

Количество

1

13275221

SCREW,Pozdriv Pan Hd, M5 x 50mm, Cl 8.8

4шт.

2

47135914

HOUSING

2шт.

3

5178335

SHAFT,12mm OD x 48.5mm L

2шт.

4

5178541

PLATE

2шт.

5

14499601

WASHER,13mm ID x 20mm OD x 2.5mm Thk

2шт.

6

14456981

O-RING,0.424" ID x 0.103" Width

2шт.

7

14464280

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

2шт.

8

13274411

SCREW,Pozidriv Pan Hd, M5 x 20mm

2шт.

Выбрано товаров: 8
