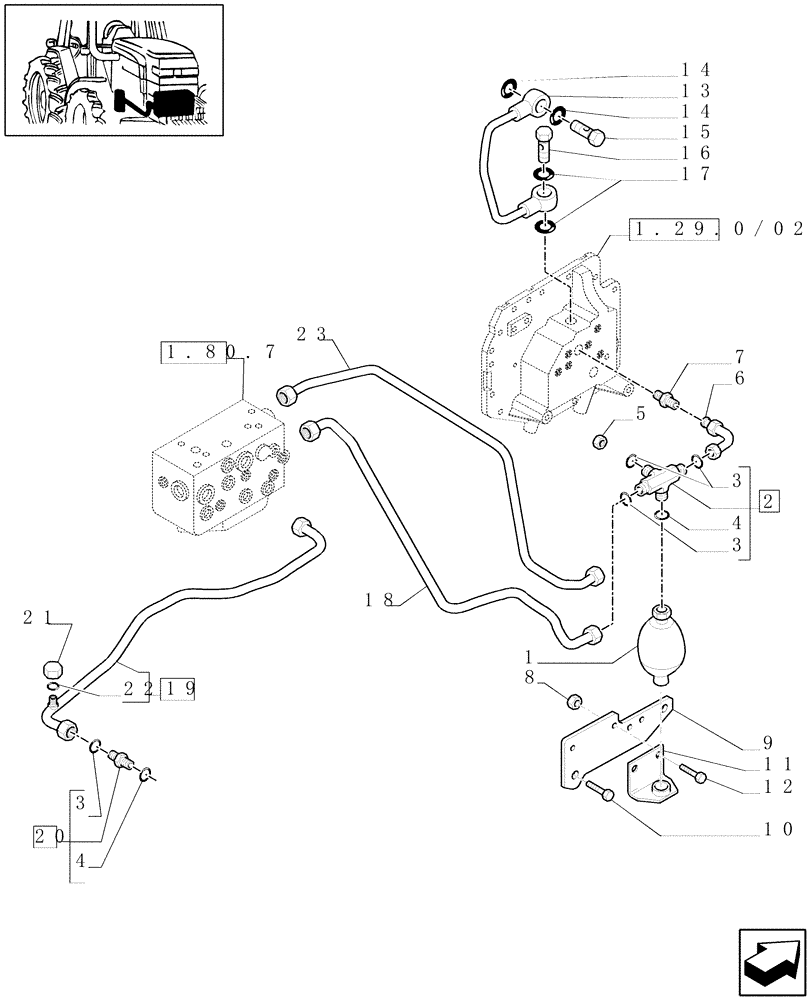

Запчасти Case IH MAXXUM 140 (1.29.6/05) - 113 L/MIN CCLS PUMP FOR (CL.4) FRONT AXLE - TRANSMISSION VALVE BLOCK PIPES (VAR.334835-336835-337835-338835-339835 / 743744) (03) - TRANSMISSION

1

5195043

ACCUMULATOR,0.75L

1шт.

2

47130867

HYD CONNECTOR

13/16"-16, M18 x 1,5

1шт.

3

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

4шт.

4

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

5

47123020

PLUG,Hex

13/16"-16

1шт.

6

82850840

HYD TUBE,9 mm ID, 12 mm OD, 54.6, 45 mm Length

13/16"-16

1шт.

7

81863437

HYD CONNECTOR,M18 x 13/16"-16 ORS

1шт.

8

16100821

NUT,M8, Cl 10

2шт.

9

82033143

BRACKET

1шт.

10

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

11

82009123

SUPPORT

1шт.

12

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

13

47123594

HYD TUBE

1шт.

14

10261160

SEALING WASHER,M14.2 x 18 x 1.5, Copper

2шт.

15

10184311

BANJO BOLT,M14 x 1.5 x 27mm

M14 x 1,5

1шт.

16

5196881

BANJO BOLT

M18 x 1,5 x 3,5

1шт.

17

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.

18

47123592

HYD TUBE

13/16"-16, Serial Range: -C6472

1шт.

19

47134370

HYD TUBE

13/16"-16

1шт.

20

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

13/16"-16, M18 x 1,5

1шт.

21

5189973

PLUG

9/16"-18

1шт.

22

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

23

87634962

HYD TUBE,12 mm OD

13/16"-16, Start Serial: D6472

1шт.
