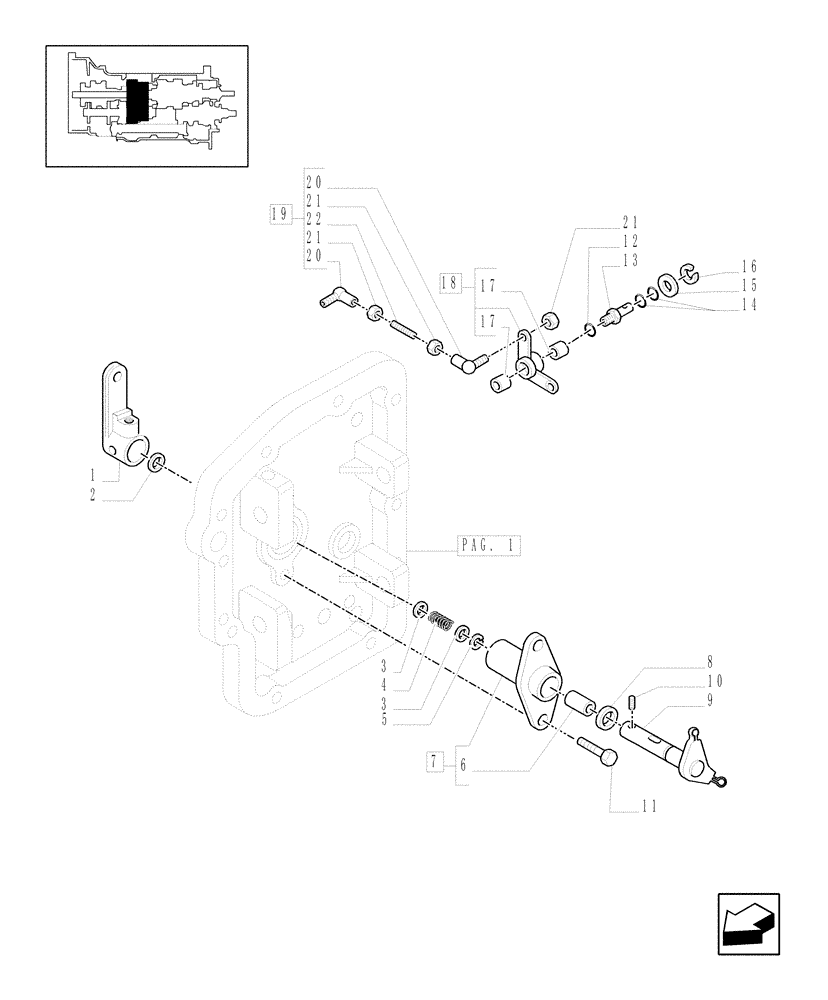

Запчасти Case IH MAXXUM 140 (1.29.0/01[02]) - TRANSMISSION 24X24 HI-LO - GEARBOX COVER, LEVERS AND TIE-RODS (STD + VAR.330282) (03) - TRANSMISSION

1

82031921

LEVER

1шт.

2

5165599

GASKET,24mm ID x 35mm OD x 9mm Thk

1шт.

3

5165595

SPACER

2шт.

4

5165594

SPRING

1шт.

5

5165598

CIRCLIP

1шт.

6

5167877

BUSHING,24mm ID x 27mm OD x 20mm L

24 x 27 x 20

1шт.

7

5165891

SUPPORT

1шт.

8

82020482

SPACER

1шт.

9

87306741

PIN

1шт.

10

14610270

LOCK PIN,M10 x 45, Slotted

1шт.

11

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

12

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

13

47127806

PIN

1шт.

14

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

2шт.

15

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

1шт.

16

11066076

SNAP RING,M12, Ext

1шт.

17

47127805

BUSHING,12mm ID x 14mm OD x 15mm L

2шт.

18

47127803

LEVER

1шт.

19

47127882

TIE-ROD

1шт.

20

47127981

BALL JOINT

2шт.

21

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

22

13791321

SET SCREW,Hex Skt, M8 x 50mm, Flat Pt

1шт.
