Запчасти Case IH MAXXUM 140 (1.28.7[06]) - TRANSMISSION 16X16 AND 17X16 - SPEED ENGAGEMENT REAR CLUTCH - SUPPORT AND MANIFOLD - C6835 (STD + VAR.330283) (03) - TRANSMISSION

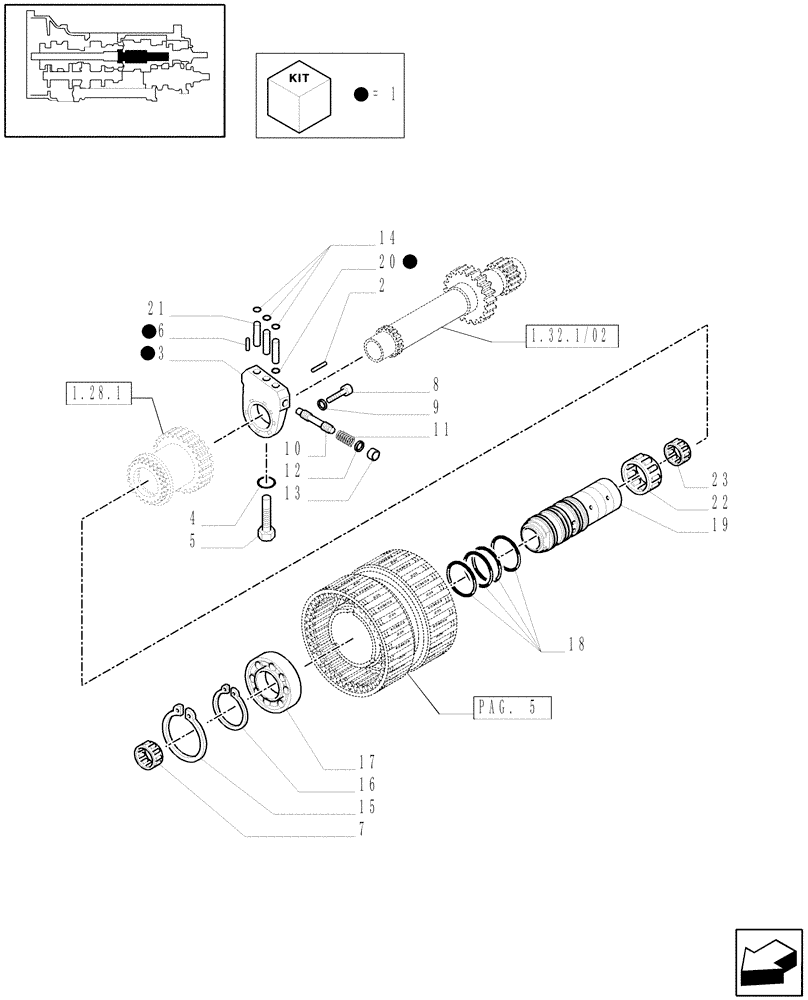

Схема запчастей Case IH MAXXUM 140 - (1.28.7[06]) - TRANSMISSION 16X16 AND 17X16 - SPEED ENGAGEMENT REAR CLUTCH - SUPPORT AND MANIFOLD - C6835 (STD + VAR.330283) (03) - TRANSMISSION
1.28.1
6
13
1
15
11
1
1
19
23
12
5
21
20
7
10
8
9
17
22
2
1
3
16
18
4
pag. 5
14
1.32.1/02

Артикул

Название

Примечание

Количество

1

47128753

MANIFOLD

1шт.

2

81867453

GROOVED PIN

2шт.

3

47128751

MANIFOLD

Incl.2

1шт.

4

81832258

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

81869155

PIN,16.74mm OD x 96mm L

1шт.

6

81863107

PLUG

CUP

4шт.

7

81863573

BEARING ASSY,Needle, 50mm ID x 58mm OD x 19.7mm W

1шт.

8

14305324

HEX SOC SCREW,M6 x 20mm, Cl 8.8

4шт.

9

11194371

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.4mm Thk

4шт.

10

81863917

SHAFT

1шт.

11

81867109

SPRING

2шт.

12

81869801

SEAL

2шт.

13

81863424

PLUG

2шт.

14

83925620

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

6шт.

15

82935813

SNAP RING

1шт.

16

81863364

CIRCLIP

1шт.

17

81864036

BEARING ASSY,69.98mm ID x 89.98mm OD x 9.85mm W

1шт.

18

81864173

OIL SEAL,Locking, 80.51mm ID x 86.01mm OD x 2.15mm Thk

SEALRING

4шт.

19

81871383

SUPPORT

1шт.

20

47128758

FRICTION WASHER

2шт.

21

82850838

TUBE,14.3 mm OD, 76 mm Length

3шт.

22

81863561

BEARING ASSY,80mm ID x 86mm OD x 19.8mm W

1шт.

23

81864006

BEARING ASSY,50mm ID x 58mm OD x 34.8mm W

1шт.

Выбрано товаров: 23
