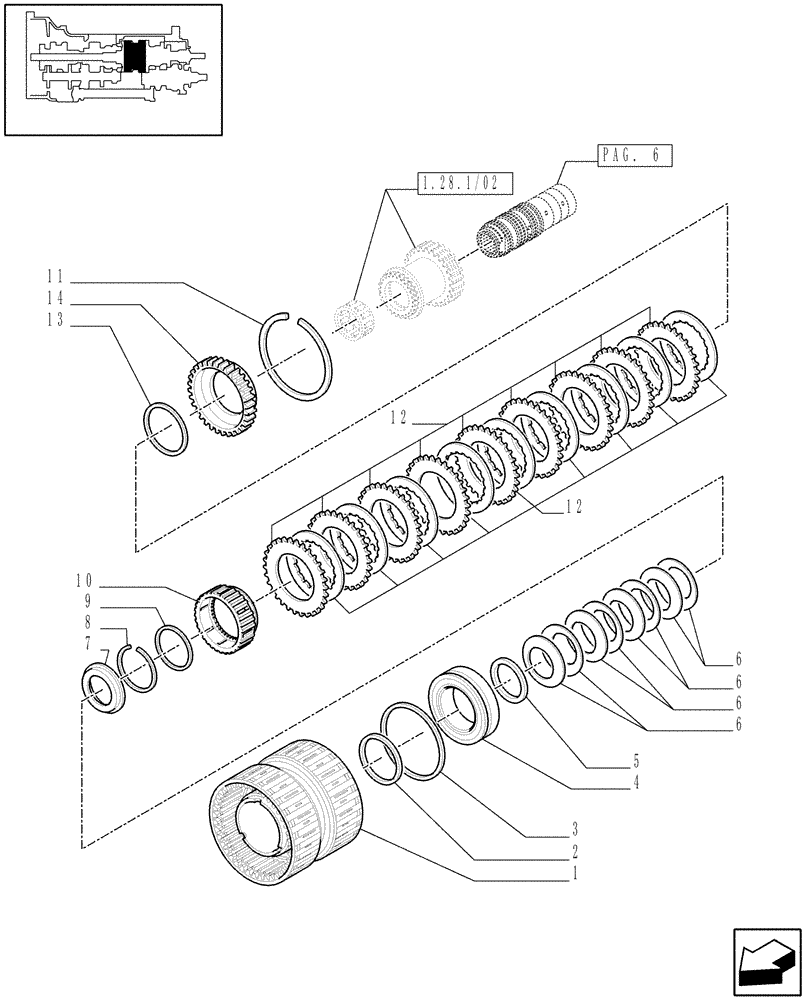

Запчасти Case IH MAXXUM 140 (1.28.7[05A]) - TRANSMISSION 16X16 AND 17X16 - SPEED ENGAGEMENT REAR CLUTCH - HOUSING AND C4 DISKS - D6835 (STD + VAR.330283) (03) - TRANSMISSION

1

47136613

HOUSING

1шт.

2

5199232

SEALING RING

1шт.

3

47136620

SEALING RING

1шт.

4

47136621

PISTON

1шт.

5

47136691

SPACER

1шт.

6

81864187

SPRING

8шт.

7

81865531

RETAINER,100.2mm ID x 112.4mm OD x 4mm Thk

1шт.

8

47136619

SNAP RING

1шт.

9

84345893

THRUST WASHER

1шт.

10

47136630

HUB

1шт.

11

5194760

SNAP RING,163mm ID

1шт.

12

47136624

CLUTCH PACK

1шт.

13

81865152

SEAL,107.72mm ID x 116.32mm OD x 3.8mm Thk

1шт.

14

47136623

THRUST PLATE

66 Teeth

1шт.
