Запчасти Case IH MAXXUM 140 (1.21.6/02) - SUPPORTS FOR NORTH AMERICAN LOADER READY (VAR.333822) (03) - TRANSMISSION

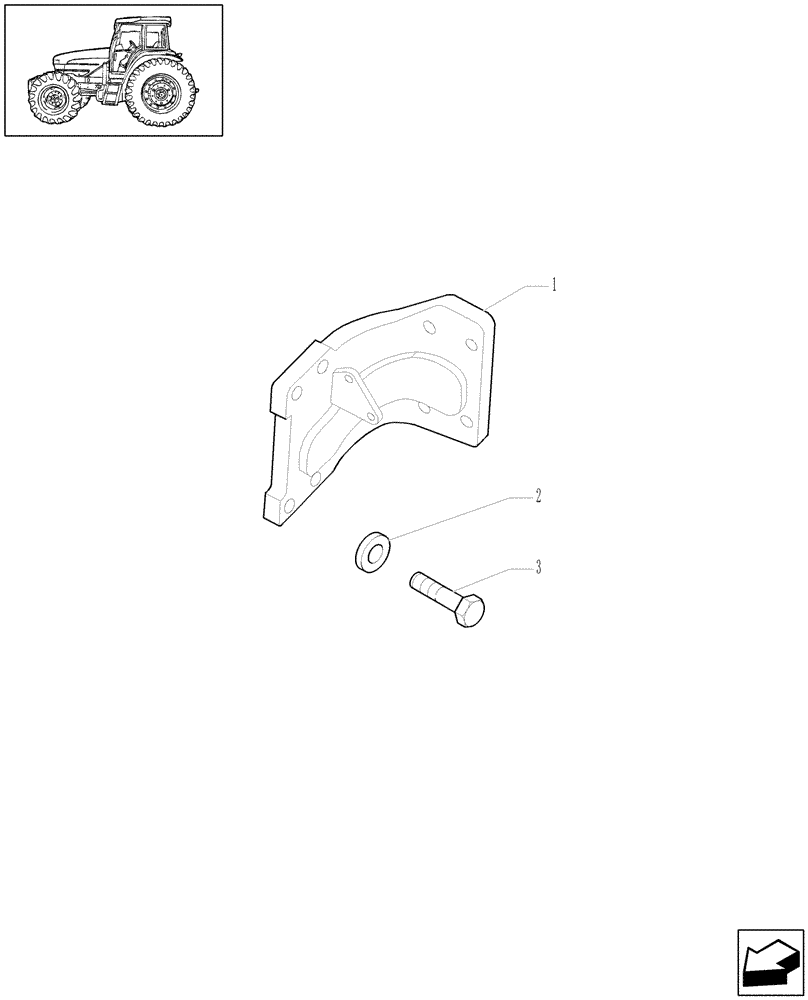

Схема запчастей Case IH MAXXUM 140 - (1.21.6/02) - SUPPORTS FOR NORTH AMERICAN LOADER READY (VAR.333822) (03) - TRANSMISSION
2
3
1

Артикул

Название

Примечание

Количество

1

87429764

BRACKET

RH, MAX100, MAX110, MAX120, MAX130

1шт.

Order kit 87437419

1шт.

1

87430417

BRACKET

RH, MAX115, MAX125, MAX140

1шт.

Order kit 87437421

1шт.

1

87429763

BRACKET

LH, MAX100, MAX110, MAX120, MAX130

1шт.

Order kit 87437418

1шт.

1

87430416

BRACKET

LH, MAX115, MAX125, MAX140

1шт.

Threaded steel Cap on the end of 86582451 is 13/16"-16 threads. It is only available with a new valve

1шт.

2

82014831

LOCK WASHER,19.5mm ID x 29mm OD x 3.4mm Thk

8шт.

3

11125271

BOLT,Hex, M20 x 75, 12.9

8шт.

Выбрано товаров: 10
